Powder Granule Packaging Machine - China

Ⅰ.

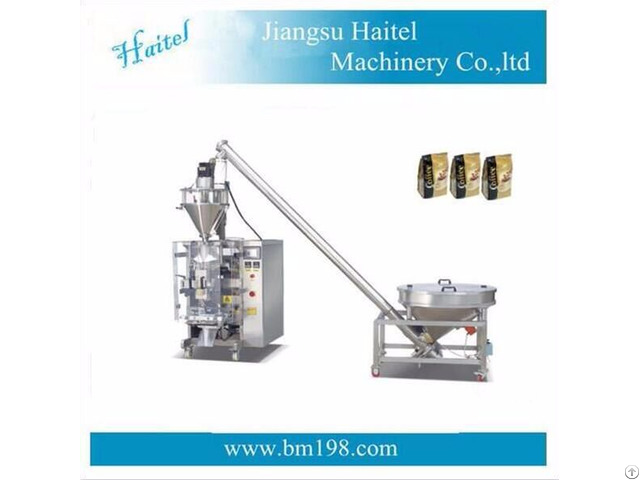

Machine Picture

Ⅱ.

Characteristics:

1 - Film drawing down system controlled by servo motor.

2 - Automatic film rectifying deviation function.

3 - Various alarm system to reduce waste.

4 - It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, finished product delivery when it equips with feeding and measuring equipment.

5 - The way of bag making: The machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.

Ⅲ.

Application:

It is suitable for packing of several of granule, powder, such as sugar, salt, coffee, etc.

Ⅳ.

Main technical parameters:

Model HTL-D420

Packing speed About 30-60 bags/min.

It is according to quality of wrapping film and materials.

Accuracy ≤1.5%

Bag size (L) 80-300 mm; (W)80-180 mm

Maximum film width 420 mm

Filling range 50-1000 g

Film thickness 0.04-0.09 mm

Packing material Thermal composite materials, such as BOPP/CPP, PET/AL/PE

Air consumption 0.8 MPa, 0.4 m³/min

Total power 5 KW

Voltage (V) Four wires, three phases, 380V, 50Hz.

Air compressor Not less than 1 CBM

Total height 2528an

6 Cylinder Japan(Electromagnetic valve JINGQI Taiwan(

8 Intermediate relay Weidmuller Germany

9 Photoelectrie BEDELI Taiwan(台湾)

10 Powder ZHANGXIN China

11 Solid state relay XIANLI/ OMRON

12 Thermometer control OMRON

Ⅵ.

Each machine characteristics and technical parameters:

1 - HTL-D420 Vertical automatic packaging machine

● Features

* Film drawing down system controlled by servo motor.

* Automatic film rectifying deviation function;

* Various alarm system to reduce waste;

* It can complete feeding, measuring, filling, sealing, date printing, charging (exhausting), counting, and finished product delivery when it equips with feeding and measuring equipment;

* The way of bag making: the machine can make pillow-type bag and standing-bevel bag, punch bag or according to customer’s requirements.

● Technical parameter

Items Content

Capacity 60 bag/min

Bag size (L)80-350mm (W)100-250mm

Bag type Pillow-type bag, standing-bevel bag, punch bag

Filling range 150-2000ML

Max film width Max 520mm

Film thickness 0.04-0.09mm

Air consumption 0.8Mps 0.4m3/min

Main power/voltage 2.5KW/ 220V 50Hz

Dimension L1500*W1140*H1540mm

Weight 680kg

2 - Vertical forming-filling-sealing machine

● Descriptive abstract:

This type can do measuring and filling work.

Due to the special design, so it fits more to the fluidic or low-fluidity materials, like milk powder, Albumen powder, solid drink, white sugar, dextrose, coffee powder, fodder, pharmaceuticals, agriculture pesticide, granular additive, dyestuff, and so on.



● Main features:

The hopper could be washed easily without tools.



Servo motor drive screw.



Stainless steel structure.



Include handwheel of adjustable height.

Replacing the auger parts, it is suitable for material from super thin powder to granule.



Hopper Split hopper 50L

Filling Weight 10 ~ 2000g

Filling Accuracy <±1%

Filling Rate 40 ~ 120 time/min

Power Supply 3P / 208V-415V 50/60Hz

Total Power 1.9kw

Total Weight 220kg

Overall Dimensions 1060×650×1100mm

3 - Spiral conveyor

● Descriptive abstract:

The Machine can convey sorts of material.

Combined with the package-machine of our company, it can do material situation tracing.

Also it can be used separately.

Complete machine made in stainless steel, except for the electrical machine, gearing, and the framework.

● Main features:

1) Vibrating screw feeding machine is composed of double motor, feeding motor, vibrating motor and each switch control.

2) Hopper is adjustable and vibrational which make material to be flowing easily.

It is good to material.

3) Hopper is separate from twisting shaft.

Structure is reasonable and easily loading and unloading.

4) Characteristic dustproof, bearing won't be polluted by the dust and powder.

5) To cleanup scrapped materials conveniently and design the machine to be: Discharging the material reversely, storing materials at the bottom of hopper pipe, and taking out the whole screw.

● Parameters:

Charging Capacity 5 CBM/h.

Powder Supply 1.5KW

Diameter of pipe Ф141mm

Hopper Volume 200L

Power Supply 3P 208-415V 50/60Hz

Charging angle General 45 degree, special requirement 30degree, 60degree

Charging Height 1-5m

Total Weight 180kg

Overall Dimensions of Hopper 1023×823×870mm

4 - Finished products conveyor

● Features:

The machine can send the packed finished bag to after-package detecting device or packing platform.

● Specifications:

Lifting height 0.8-1.5 mm

Feeding speed 30 m/minute

Dimension (L*W*H) 2110×340×500 mm

Voltage 220V/45W
