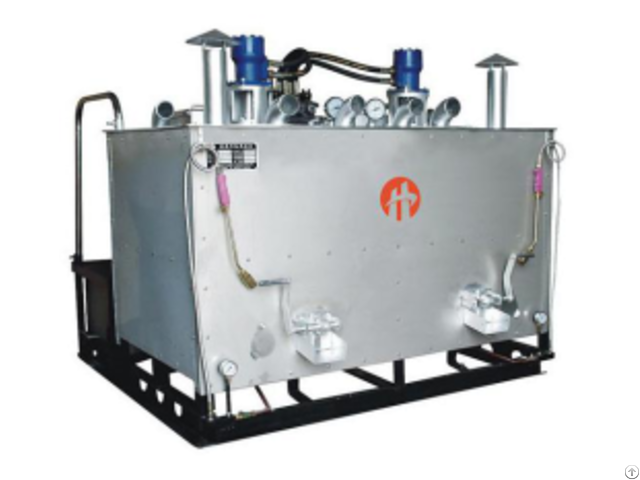

Road Marking Machine Hydraulic Double Cylinder Thermoplastic Paint Pre Heater 800 1000 1200 - China

price: 4900.00 Dollar US$

Technical Data:
Model Number: YHHF
Diesel Power(W): 13.2KW(18HP)
Diesel engine startup mode: Manual or electric start
Hydraulic motor power: 13KM
Transmission Model: Hydraulic transmission
Heating Mode: Liquefied petroleum gas (Diesel injection burner coming soon)
The number of bottle: Two
Cylinder capacity?
Type800: 400kg*2 ?16 bags each bottle?
Type1000: 500kg*2 ?20 bags each bottle?
Type1200: 600kg*2 ?24 bags each bottle?
Cylinder structure: Suspended
Insulation construction: Three layers of circular heat preservation
Bottom of the pot material: High carbon steel alloy
Thickness of bottom of the pot: 10mm
Panel material: Stainless steel
Hydraulic oil tank capacity?70L
Heating temperature: 0-300?
Recommended discharge temperature: 180-220?
Machine weight: 1000kg/1100kg/1250kg
Dimensions(L*W*H): (different model with different dimension)
Type800:1650*1550*1460 mm
Type1000:1700*1650*160 0mm
Type1200:1750*1750*170 0mm

Thermoplastic pre-heater, also called hot melt kettle, always matched with thermoplastic machine, is used for heating, melting, and stirring thermoplastic road marking paints continuously, preparing hot melt paints for the thermoplastic road marking machine during long distance road lines marking work.
Thermoplastic pre-heater can be used in the following areas:
Highways-for guiding and controlling traffic
City roads-for smooth flow of traffic city streets
Airports & runways
Side streets
Parking lots
Railway platform
Bus stops
Zebra crossing
Bike paths
Motorway etc

Warnnig Tips:
1. The temperature is high, so wear gloves before operate the thermoplastic pre-heater to prevent getting burnt.
2. If the thermoplastic paint is wet or there is water in the kettle, please open the cover on the kettle when heated.
3. During the construction, first, put powder coating (additives) into the hot-melt kettle. The heating temperature must be controlled between 180 ? ~ 220 ?.
4. Begain stirring while melting, when the paint into a homogeneous liquid state (above 100?). Turn reversing valves in neutral first, when the paddle is completely stopped, then starting the reverse stirring.
5.And then, the hot-melt material is ready to be discharged into the thermoplastic road marking machine for marking construction.
6. Avoiding remaining too much coating after construction.
7. Regularly check the gas pipe, prevent aging.
8. The melting paint quality affects directly to the traffic lines marking quality, so the pre-heater is a key part during thermoplastic paint roadline construction, and essential device for thermoplastic paints heating and melting.
