Small 8 Inch Hydraulic Cutter Suction Dredger For Sale - China

R&D and technical team

Highling Dredgers achieve first-class level in the world with Holland design and technology.

Our company has research and development center, quality department and after-sales department.

The number of staff is up to 800, including 50 senior engineers on dredger building and researching, 60 designers on machinery construction, 18 engineers on quality inspection, as well as 30 after-sales service engineers.

Products are exported to more than 50 countries such as Bangladesh, Pakistan, India, Brazil, Argentina, Benin, Egypt, Poland, Nigeria, Ukraine, Indonesia, Korea and other countries worldwide.

By virtue of advanced technology, stable & reliable quality, Our company has gained great honors from the domestic and foreign enterprises.

Based on honest, mutual benefit and development, we warmly welcome you visit our company and cooperate with each other.

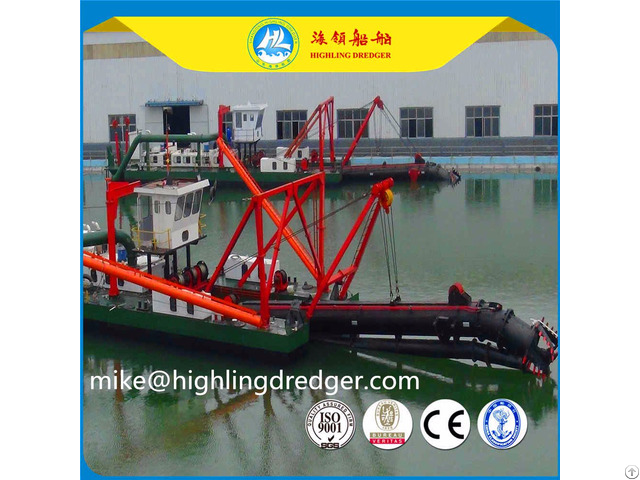

The dredger is a not self-propulsion, hydraulic cutter suction dredger.

The pontoon part is made up of several boxes.

The dredger equipment includes sideslip device, cutter up and down device, location spud device, deck crane and so on.

The main engine is an independent entrainment form, one main pump engine, one auxiliary hydraulic engine.

Dredger pump host output belt has clutch reduction function.

Dredger pump is driven by the main gear decelerating box.

Lighting and emergency power for stopping working will be offered by the generator set.

Cutter will be driven by the motor and cutter bearing with lubricating.

HL200 8inch 800m3/h hydraulic cutter suction dredger

Dredger LOA 17.0m

Hull size(L×B×H) 13.0*5.2*1.5m

Main pontoon(L×B×H) 8.3*2.2*1.5m

Side pontoon (L×B×H) 11.0*1.5*1.5m

Structure Can be dismantle and re-assemble easily, box structure, lower delivery cost

Main engine brand & power Weichai /224kw

Auxiliary engine brand& power --

Harbour generator 20GF/Cummins

Dredging pump Technology

Discharge pipe inner Dia.

200mm

Head 30m

Max.

dredging depth 8m

Water flow 800m³/h

Solid sand capacity 160m³/h

Discharge distance 800m

Cutter head Dia.

1300mm

Cutter power 30kW

Drought 1.1m

Displacement 100T

Hydraulic control system PLC Siemens

Wire rope pulling force (Lifting winch )*Quantity 40KN *1

Wire rope pulling force (Traversing winch )*Quantity 40KN *2

Operation room Adjustable chair, movable side-window, air condition, PLC system, signal lights and floodlights

Total weight 50T

Total power 244kw

Total fuel oil consumption 34L/H
