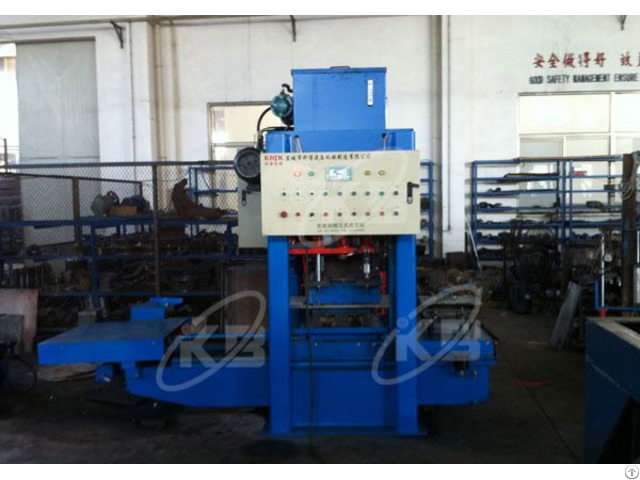

Tile Making Machine

1 - Technical data

Equipment type KB-125E/500

moulding speed 5-6pcs/min

main frame power 7.5kw

main frame weight 7T

external dimension 3300*1680*2700mm

2 - Production Procedures

Work flow: Material put into bucket --- Elevating--- Mixing --- Fixed-quantity filling --- Pressure forming --- Mould unloading --- Forming tiles --- Stacking --- Curing for 3-7 days - --- Polishing --- Finished products.

3 - Each part equipment supporting Items:

No.

Equipment Set

1 Moulding machine 1

2 Mixer 1

3 Elevator 1

4 Feeder 1

5 Air compressor 1

4 - Feature

1).

Is PLC controlled - Is simple to operate and maintain; and it is with the function of Data input and output, Logic control and fault, and Self-diagnostic, etc.

2).

Requires just a few hours of instruction to become familiar with its operation;

3).

Occupies and needs very little floor area for production;

4).

May be disconnected from the power supply and ‘stored’ when not in use;

5).

Designed and constructed to the same high-quality engineering standards for which all of our equipment is known.

6).

Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted.

And Precise control components action.

7).

Take use "program-controlled" Transmission positioning, stable transmission, accurate setting;

8).

Take vibration on worktable, rotating multi - layer cloth, high frequency pressure, automatic propulsion, etc.

make molding cycle is short, high production efficiency, quality and density of large tiles, high strength, dimensional accuracy.

9).

This machine works in many ways.

By changing molds, it could produce roof tile, stair tile.
