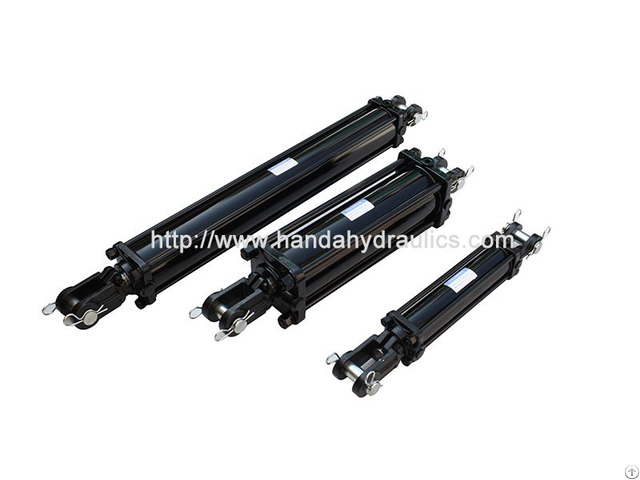

Tr Tie Rod Agricultural Hydraulic Cylinder - China

Main parameters:

Bore size: 2"-5"

Rod Diameter: 1.25"-2"

Stroke: 4"-48"

Working Pressure: 3000PSI

Oil port: 3/8NPT, 1/2NPT, SAE is available

Pin diameter: 1"

Tube: Precision honed steel

Piston & Gland: Dctile iron

Rod: Hard chrome plated

End Mounts: Ductile iron female clevises with pins and clips

Seal Brand: Hallite

Intended Use: Double acting

applications

How to offer?

What is the information we require for customer before we make the quotation?

1 - Bore & Rod Dia.

( inch or mm)

2 - The closed & opened length (Stroke)

3 - Mounted Type: like bearing or clevis 4 - Working & Testing Pressure

5 - The oil port size, thread size

6 - Assembling way & distance

7 - Drawing or blueprint is enough for quotation

What's hydraulic cylinder?

A hydraulic cylinder is a mechanical actuator used to provide unidirectional force through a unidirectional stroke.

Hydraulic cylinders are used in almost every industry and are available in a variety of confiurations.

The two main types of hydraulic cylinders are Tie-rod and Welded.

Each of these cylinder types can have unique applications due to their designs.

Tie-rod cylinders are usually installed in light to medium duty applications and are generally designed to be repaired or re-packed if necessary.

Welded cylinders are designed for most applications and are more complex in design, but are generally more diffiult to repair due to the welded design.

Welded cylinders are typically a better solution due to their compact design and when a more robust design is important in an application.

What's MOUNTING OPTIONS?

The most commonly used mounting options are flange, trunnion, clevis, pin-eye, cross-tube, spherical, and tang.

Cylinder mounting is chosen based upon the applications requirements.

Why choose us?

1: Various style for completely series hydrauli products for you to choose

2: High quality with competitive price

3: Provide free products information.

4: Reliable quality assurance and active after-sell service 5 - 100% test before shipment

6 - Short lead time

7 - Supply custom made cylinders for our customers

Quality assurance

Use high-end components

The best design which is designed by experienced engineers

Well-trained workforce

All hydraulic cylinders must do pressure test before shipment

Good quality control and assurance system

Advanced test apparatus

High pricision measuring apparatus

Zhejiang Handa Machinery CO., Ltd

Company profile:

Professional: 18 years' experience focused on multi spindle drilling & tapping machine

Brand: HANLDA, China Famous Brand

Engineers: 13 professional and experienced engineers

Certificates: ISO9001: 2008 / CE For all the products

Letters patents: 17official patents

Honors: Lishui Hi-tech Enterprise, Lishui famous brand

Exported Countries: North America, South Asia, Southern Europe, Northern Europe, Central America, Western Europe, Eastern Asia, Mid East, Oceania, Africa, Southeast Asia, Eastern Europe, South America, Ukraine etc

Company Contact:

• Posted By: Zhejiang Handa Machinery Co.,Ltd

• Phone: 86 578 3558200

• Address: No. 29 Juxian Xi Road.,Huzhen Town,Lishui,Zhejiang,Chin a, Lishui , Zhejiang , China

• Email:

• Website: http://handahydraulics.com

• Business Description: Established in 1999, Zhejiang Handa Machinery Co., Ltd. is a professional manufacturer and exporter of hydraulic cylinders, hydraulic valves, hydraulic power unit.

  Located in Lishui City of Zhejiang Province.

  Handa currently employs over 100 team members and covers an area of 100, 000 square meters with modern standard workshop and advanced equipment.

  The 6S and ERP management systems are implemented in our whole company.

  Handa is also getting ISO9001 and CE certificates.
