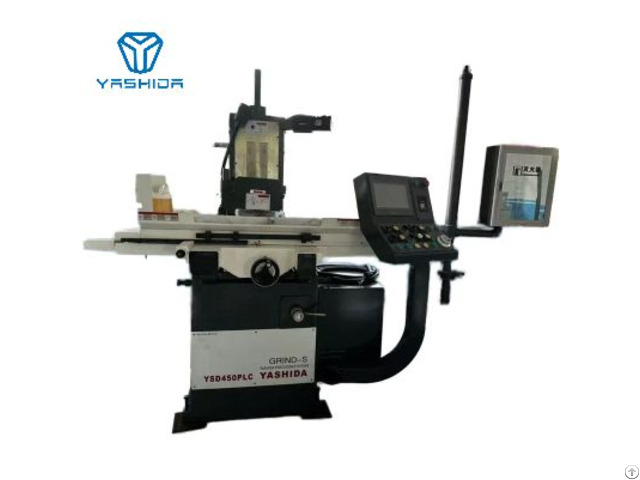

Yashida 450plcautomatic Surface Grinding Machine - China

X-axis travel (left and right effective travel) Mm 475(400)

Y-axis travel (effective travel before and after) Mm 160(150)

Z-axis travel (up and down) Mm 350

Distance from spindle nose to workbench Mm 350

Table specification

T-groove of workbench (width * number of grooves * length) Mm 17*1*500

Table size (X-axis direction) Mm 450

Table size (Y-axis direction) Mm 150

Maximum load of workbench Kg 50

Spindle specification

Speed of main shaft Rpm 50/60HZ 2850/3360 (integrated)

Spindle horsepower Kw 1.1kw/1.5HP

Taper of spindle nose and spindle outer diameter 1：5、Ф76

Feed system

X-axis oil pressure feed electronic contactless commutation M/min 5-25

Y-axis forward and backward stepping motor feed Mm/min 790/950 (50/60HZ)

Manual feed of Z axis (upper and lower handwheels) Mm A grid of 0.001 and a turn of 1

Up-down grinding feed Mm/min 0.001-0.03

Motor and power requirements

Flushing motor HP 1/8

Vacuum motor HP 3/4

Hydraulic motor HP 2

Spindle motor HP 1.5

Maximum power demand 5KVA

Machine size

Machine length Mm 1400

Machine width Mm 1350

Length, width and height of machine Mm 1400*1400*1810

Machine weight Kg About 950KG

Company Contact:

• Posted By: Yaxida Precision Machinery (suzhou) Co.,LTD

• Phone: 18013268578

• Address: Room 2, No. 268, Shengfan Rd., Kunshan City, Jiangsu Province, China., kunshan , JiangSu , China

• Email:

• Website: https://www.yashidagrinder.com/

• Business Description: Yaxida Precision Machinery (suzhou) Co., Ltd. is a professional manufacturer of precision grinding machines in China.

  Now Our company is mainly engaged in the production, manufacturing and sales of 5 major categories of products, including manual grinders, centerless grinders, CNC grinders, high-speed engraving and milling machines, and high-speed machining centers.

  Our products are widely used in aerospace, automobile, electronics, new energy and environmental protection equipment, military and other fields.

  The production capacity of our factory can reach 10,000 grinders, 10,000 CNC engraving and milling machines, and 50,000 sets of sheet metal assembly processing capacity per year.

  Our factory has 15 large gantry machining centers and 5 imported horizontal boring iron centers.

  5 large laser cutting machine, 10 CNC bending machine, and a full sheet metal spraying line.

  Our outstanding advantage is we have 36 years of experience in the grinding industry and we can provide a one-stop grinding solution for you !

  Welcome to contact us !
