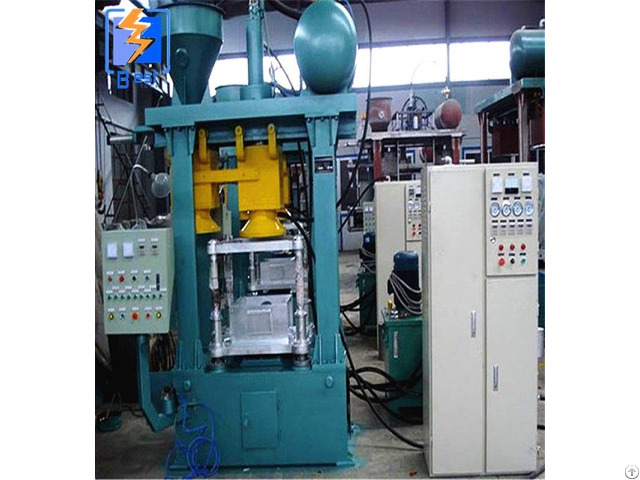

Z945 Vertically Resin Sand Core Shooting Machine - China
price: 8000.00 Dollar US$
Z945A Vertically resin sand core shooting machine/Shooter/Core making machine max mold size (L*W mm): 500x400, Thickness for fixed mold (mm): 150, Min gap between movable and fixed template (mm): 300, Max gap between movable and fixed template (mm): 650, Closing cylinder dia(mm) gas : 160, Stroke of mold assembling cylinder (mm) : 350, Dia of compaction cylinder/rod(mm): 125/100, Sand shot cylinder dia.
(mm) : 50, Sand shot cylinder volume (kg) : 5.5, Core pushing means : anti-ejector, Core taking method : manual, Volume of sand storage hopper (kg): 100, Air control system pressure (MPa): 0.55-0.65 Sand shot pressure (MPa): 0.3-0.4 Drive mode : Pneumatic Hydraulic system pressure (MPa): 8 Hydraulic operating pressure (MPa): 5.5-6.5 Core box heating manner : Electric heating Power supply : 380V 50HZ Heating power: 220V 50HZ Control power : DC 24V Dia temperature control : Automatically Operating mode : Manual or Automatically
Company Contact:
- Posted By: Qingdao Bestech Machinery.com
- Phone: +8613780658121
- Address: shuangzhu road , Qingdao , Shandong , China
- Email:
- Website: http://www.besttechmachinery.com
Published date: January 6, 2019
- Business Description: Qingdao bestech machinery., Ltd is a collection of scientific research , design , manufacture, installation and debugging and technical advisory services and the intergration of the professional casting equipment comapanies .
the main production casting machinery products : dust sand cleaning three series .
contains the bag type dust collector , filter cartridge dust collector , shot blasting machine (crawler shot blaster , rotating table shot blaster, hook type shot blaster , through type shot blaster , steel pipe shot blaster), wear parts , such as the impeller body nearby 20 varieties .
