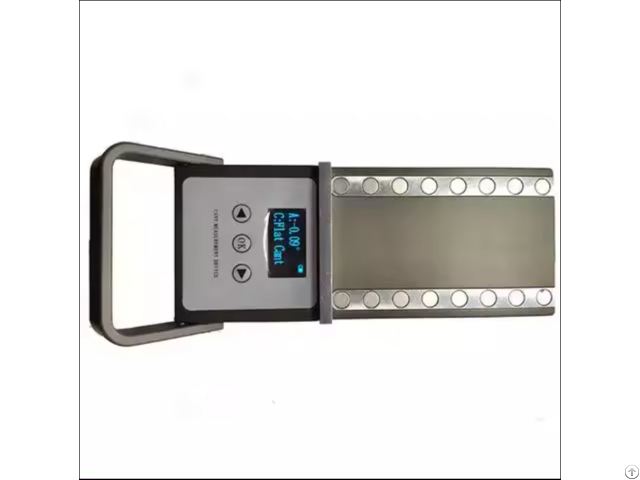

Rail Cant Measurement Device For Railway Inclination Measuring - China
price: 1600.00 Dollar US$
Rail Cant Measuring Device is a High Quality Railway Measuring Tool / Cheapest Rail Bottom Slope Measuring Instrument .
The main part of the wheel tread is the 1: 40 slope.
To make the top of rail fore evenly under the load of a conical tread wheel.
Rail should be tumbling-in not vertical.
the inner inclination of therail is called rail bottom slope.
The product is easy to use, both in the daytime and at night.
It is an ideal measuring tool for public works and engineering departments.
PRODUCT SPECIFICATIONS
Place of Origin Hubei, China
Type Rail Cant Measuring Device
Material Aumunium
Dimensions (L x W x H) (mm) 200*90*60mm
Brand Name Linkage
Model JG-SO1
Measure range ±1: 10 ~ ±1: 200
Power 40mA
Power Supply Mode Built-in lithium battery charging
Size 225*90*60mm
Working temperature -30°~ +60°
Packaging and delivery
Packaging Details Aluminum box + pe bag+pe foam+paper carton, 1 unit/carton, carton size: 43*13*25 cm G.
W: 3KG Selling Units: Single item
Single package size: 43X13X25 cm
Single gross weight: 3.000 kg
