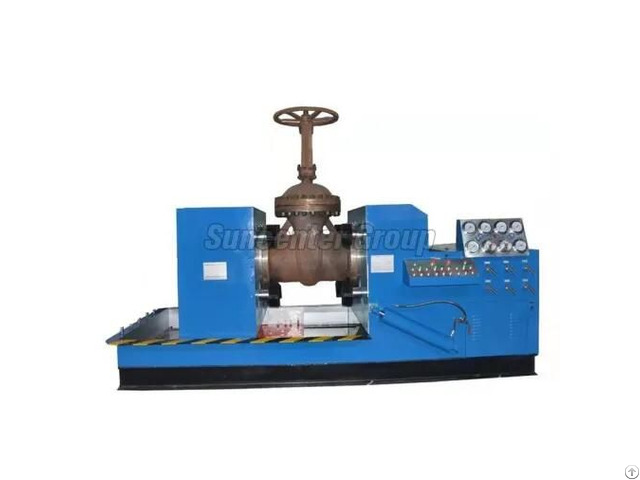

Valve Test Equipment

Valve test equipment can be used for a variety of applications, such as intermediate and final inspections by valve manufacturers, testing of new valves on delivery, and routine or post-maintenance testing of valves in service.

These include, for example, pressure testing of valve housings, leakage testing of valve seats, and set pressure testing of safety valves.

Other components can also be pressure tested, such as tanks, motor housings, pump housings, pipe fittings, insulators etc.

Special clamping devices may be required to clamp these test pieces.

Structure and working principle

Valve test equipment is composed of hydraulic system, electrical control system, high and low pressure water pump pressure supply device system, oil pressure, water pressure instrument system, control valve system, clamping workbench system and hydraulic medium storage circulating water tank.

The test process and results meet relevant regulations and requirements.

The valve test equipment adopts flange end face sealing, holding pressure claw to directly clamp the valve, and the back of the flange is compressed.

The clamping mechanism is directly driven by the clamping oil cylinder of the clamping claw.

The axial direction of the clamping claw can move forward and backward, which is not limited by the thickness of the flange.

The radial movement is composed of oil cylinder and lever to realize the radial synchronous movement of each clamping jaw.

The radial clamping jaw can move forward and backward.

It is not limited by the diameter of valve flange.

There is no external force on the test valve.

The left end of the test bench can move horizontally left and right, and the pressure test is not limited by the structural length of the test valve; The right end can be turned over 90 degrees to facilitate the sealing and air tightness test of the valve.

The high-pressure water pump is powered by the 4-7 bar air pressure system and automatically reverses through the electrical control reversing valve to make the high-pressure water pump work automatically and reciprocally.

The water suction check valve and water outlet check valve are interchanged to continuously supply pressure to the tested valve to meet the pressure requirements of the tested valve.

It is applicable to the high-pressure water seal test of 1.1 times the nominal pressure, the high-pressure water shell test of 1.5 times the nominal pressure and the low-pressure air tightness test of 4-7bar for flange valves.

Working process: adjust the pressing pressure of the oil cylinder according to the nominal diameter and pressure of the valve (refer to the pressure comparison table) - press the work-piece - open the low-pressure water pump for rapid water injection - open the high-pressure water pump - pressure maintaining timing - pressure relief and reset.

The mobile worktable is equipped with pressure pushing and powerless driving functions.

Prevent damage to equipment and valves when testing valves.

Set the interlocking function between the compression cylinder and the medium pressure: when there is pressure in the test valve chamber, the compression cylinder cannot be loosened.

Protect against misoperation.

User shall provide 46# anti-wear hydraulic oil, cable and 8bar air source.
