Api 7k Oilfield Drilling Z205 Rotary Table - China
price: 14000.00 Dollar US$

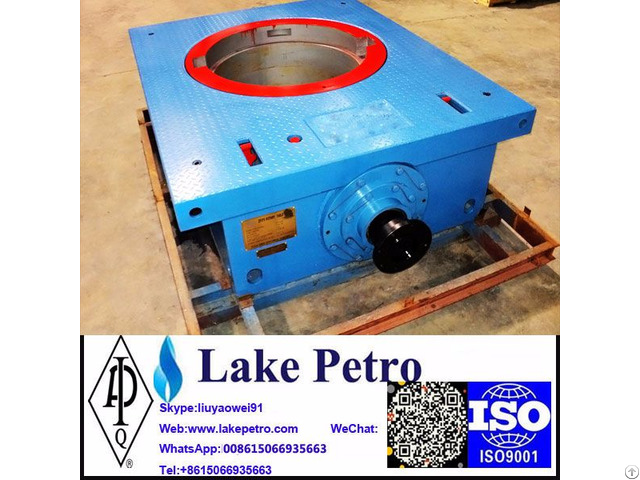

API 7K Oilfield Drilling Z205 Rotary Table
Product Description Features: Meet the API7K requirements
Conform to the requirements of industry standard SY/T5531
The rotary table adopts spiral bevel gear drive, have higher loading capacity and running smooth, long service life
The casing is a casing and welding structure which has a better rigidity and high precision
The gears and bearing adopt splash lubrication, simple and reliable
The input shaft is a cylinder structure, convenient to servicing Specification: Item Model
ZP175 ZP205 ZP275 ZP375 ZP495
Bore diameter (mm) 444.5 520 698.5 952.5 1257.3
Max.
static load (kN) 1350 3150 4500 5850 7250
Max.
working torque (Nm) 14000 23000 28000 33000 37000
Max.
speed (r/min) 300 300 300 300 300
Gear ratio 3.58 3.22 3.67 3.56 3.93
The distance from RT 1118 1353 1353 1353 1651
centerline to the center line
of sprocket inside teeth (mm)
Overall size L (mm) 1935 2292 2392 2468 2940
W (mm) 1280 1475 1670 1810 2184
H (mm) 585 668 685 718 813
Weight (kg) 3888 5530 6163 7548 11626
Company Contact:
- Posted By: Dongying Lake Petroleum Technology Co .,Ltd
- Phone: +8615066935663
- Address: Huanghe road , Huatai centre, Dongying , Shandong , China
- Email:
- Website: https://www.lakepetro.com
Published date: August 11, 2017
- Business Description: Lake Petro company is a professional supplier of various oilfield equipment, including oil drilling and service equipment, oil production equipment, OCTG , wellhead & downhole tools and spare parts with API certification.
Following the principle of "quality first, science and technology innovated, people oriented", every Lake Petro person is sparing no effort to provide the customers with best products and services.
