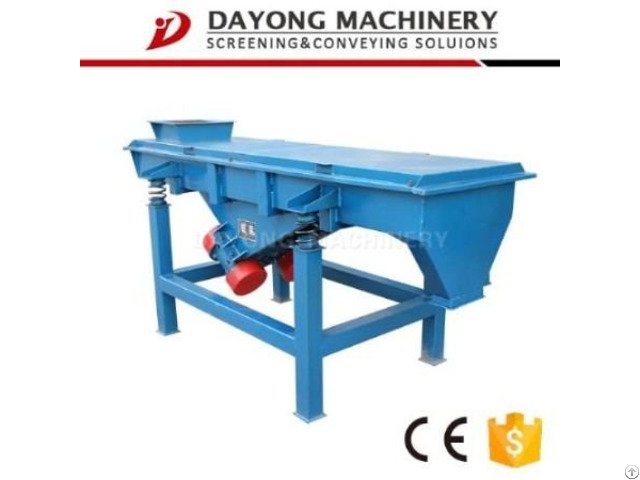

Easy Operation Fertilizer Sand Coal Powder Linear Vibrating Screen - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

1 - uses double vibrating motorsto drive, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and united as one across the motor axis direction, so its movement trajectory is linear.

2 - There is an angle of inclination two motor axises relative to screen deck, under the influence of resultant force of exciter force and materials self weight, materials are throwed up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials.

Main Features

1 - Good tightness, little dust spills.

2 - Less energy consumption, low noise and long life screen.

3 - Screening of high precision, large capacity, simple structure.

4 - Completely closed structure, auto-nesting, more suitable for pipelining.

5 - Sieve body parts are made of rolling welded steel plate and profiles (part of ligand for the bolt connection), so the overall stiffness is good, solid and reliable.

Using Scope

Linear vibrating screen machine is very suitable to screen and grade the powder or granule, and widely used to many industries, such as plastic, grinding, chemical, medicine, building materiel, food, carbon and chemical fertilizer etc.

Company Profile

Our company is a professional manufacture and supplier for Tumbler Screen Machine and other Vibrating Screen machine, our products have exported to North America, South America, the Middle East, West Europe and Southeast Asia.

Our Service

1 - 18 months quality warranty.

2 - 24 hours website online services.

3 - Your inquiry will be replied in 12 hours.

4 - All your information is well protected.

5 - My cell phone is at your service at 24 hour a day.

6 - Free easily damaged vibration screen accessories.
