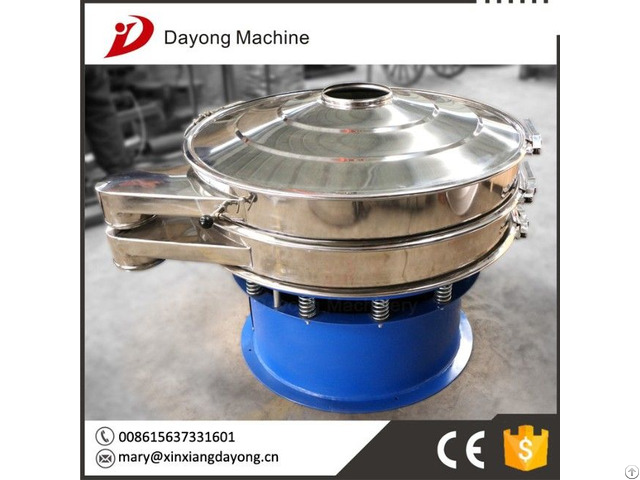

High Efficiency Ultrasonic Rotary Vibrating Screen For Pvc Powder - China

Product Parameters

Condition: New

Type: Circular

Model: as your requirement

Power: 0.55kw

Voltage: 220v/380v/450v

Dimension (L*W*H): 700*800*790mm

Weight: 170kg

Place of Origin: Henan, China (Mainland)

Certification: ISO9001 & CE

Warranty: 18 months Working Principle Its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source.

The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface.

Adjusting the phase angle on the top and bottom can change trajectories of the materials

on the sieve.

Main Features

1 - Superior accurate separation efficiency.

2 - Low space requirements.

3 - Lower noise levels.

4 - Lesser maintenance and power consumption.

5 - Ball tray for anti-blocking.

6 - Multi deck models available.

7 - Dust proof enclosed system.

8 - Simple & compact construction.

Using Scope

1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
