Jyb S Double Speed Haulage Winch - China

Mainly applied in coal mine’s underground roadway, for

drawing carts and doing some assistant transfer works on the

roads whose slope is lower than 30°.

Consists of motor, planetary differential gear, speed

switching valve, drum, last stage of transmission system,

working brake, safety arrestment brake, depth indicator,

base, hydraulic station, electric control system.,

explosion- proof electric system.

Feature:

Double speed, can meet different conditions of different

underground roadway.

Speed regulating brake use the spring pressed non-closed

structure, easily operated by manual diverting valve, and

proportional valve , greatly reduced the labor intensity.

Safety arrestment brake is a hydraulic brake in a normally

closed structure compressed by springs.

During working, this

brake is open all the time, emergent braking can be realized

by pressing the button to control the diverting valve.

Working brake is a hydraulic brake in a normally closed

structure compressed by springs.

During working, it can be

controlled by proportional valve.

Effectively solved the problem exists in traditional

transportation winch like: insensitive braking, cost great

labor force.



Caution:

JYB-S Double Speed Haulage Winch can NOT be used for

lifting.

Company Contact:

• Posted By: Xuzhou Mine Equipment Manufacturing Co., Ltd.

• Phone: 8651685785556

• Address: Times road south, Quanshan District,, Xuzhou , China

• Email:

• Website: http://www.xzkssb.com

• Business Description: Xuzhou Mine Equipment Manufacturing Co., Ltd. As a leading manufacturer

  of mining equipment in China, we have been devoted to creating new and

  quality products in mining field for more than 50 years.

  The factory

  site covers around 100000 square meters, owning around 230 sets of

  machining equipment totally, including more than 60 sets of high end,

  huge, rare equipment, and 30 sets for inspection.

  We offer a range of equipment specializing in mining winches, like:

  JD dispatching winch

  JYB transmission winch

  JH prop pulling winch

  JSDB double speed multiple used winch

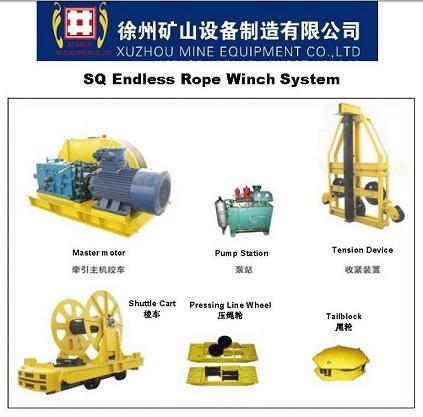

  SQ multiple rope winch
