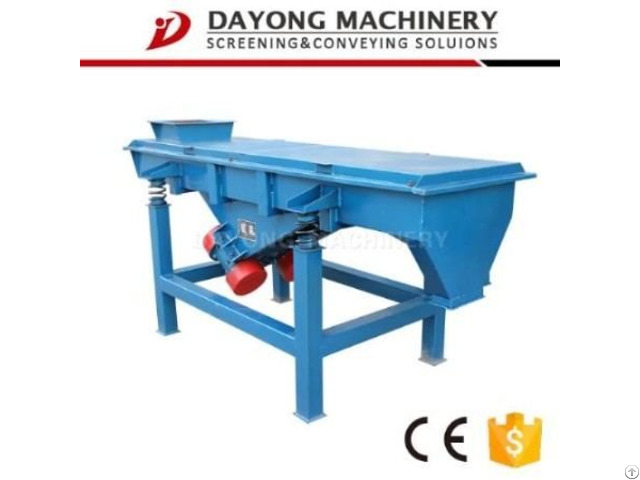

Powder Material Linear Vibrating Screen For Sale - China

Product Parameters

Condition: New

Type: Linear

Power: 2*0.75kw

Voltage: 220v/380v/415v/450v

Dimension (L*W*H): 2200*700*1100mm

Weight: 460kg

Product Capacity: 500-2000kg/h

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

High efficiency liner vibrating screen uses double vibrating motors to drive, when two motors synchronous reversely rotate, exciter forces by eccentric block generating are undone in parallel with the direction of motor axises and relative to screen deck, under the influence of resultant force of exciter force and materials self weight, materials are throwed up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials.

Applied in flowing line to achieve automatical operation.

Main Features

1 - Screen surface material is evenly, and equal thick, high screening efficiency.

2 - Single-axis drive, strong power, can single axis overhaul and won’t affect the operation.

3 - Each sieve shaft are arranged cleaning device evenly, not easy to block sieve.

4 - Low noise, small vibration, good sealing performance.

5 - PLC procedure control, sieve shaft can start up on load orderly.

6 - Enables centralized control, also may be operated on site.

Using Scope

Linear vibrating screen has a unique effect on powdery, granular materials selection and classification.

Widely used in chemical, pharmaceutical, food, metal, metallurgy, mining and other industries.

1 - Chemical industry: fertilizers, urea, petroleum coke, resins, paints, cosmetics, paints and so on.

2 - Pharmaceutical industry: industrial chemicals, the powder particles pills, pellets, etc;

3 - Food industry: soy, chestnut, small steamed bread, spices, sugar, starch, salt, rice flour, milk powder, soy milk, egg, soy sauce, fruit juice.

4 - Metals, mining metallurgy: aluminum powder, lead powder, copper powder, ore alloy powder, powder electrodes, quartz sand.

5 - Other industries: plastics, abrasives, activated carbon, carbon, building materials industry.

Company Profile

Xinxiang Dayong Vibratory Equipment Co., Ltd. is one of the famous enterprises that manufacture and sell equipments for screening, conveying and elevating.

The company is specialized in the manufacturer, sales and research of vibrating screen and non vibrating screen equipment, conveying equipment (screw conveyer, belt conveyer, drag conveyor, vibrating conveyor, magnetic conveyor, high pressure conveyor and so on), as well as elevating equipment.

Grain cleaning machine, grain polishing machine, weighting and packing machine and other main accessories.

Our Service

1 - Our company signs a long-time after-sale service agreement with customers.

2 - We provide rational and practical design according to customers' request.

3 - We send engineers to assemble and test the machine within the period as agreed in the contract.

4 - Within warranty period, we provide free repair if quality problems emerge.

5 - We provide free training of operation and maintenance for customers.

6 - We supply high quality accessories in low price.

7 - We make an excellent filing of customers for long-term following -up service.

Company Contact:

• Posted By: xinxiang dayong vibration equipment co.,ltd

• Phone: 8603733669003

• Address: The Fifth Room From West, 1st Floor, Building 18, , xinxiang , China

• Email:

• Website: http://www.zhendong-shai.com

• Business Description: We are direct factory which is also the first domestic production of vibrating screen equipment manufacturers.

  Our company mainly manufactures vibration screen , belt conveyor, screw conveyor.

  bucket elevator, crusher.
