Professional Zinc Powder Rotary Vibro Sieve - China

Product Parameters

Condition: New

Type: Circular

Model: as your requirement

Power: 0.55kw

Voltage: 220v/380v/450v

Dimension (L*W*H): 700*800*790mm

Weight: 170kg

Place of Origin: Henan, China (Mainland)

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

On the top and bottom of the vertical motor, there is a eccentric hammer, it is regarded as a vibratory source.

The eccentric hammer can change the motor rotation movement into level, vertical and inclined three dimensional movement, and then transfer the movement to the screen surface.

Change the phase angle of the hammer on the top and bottom of the vertical vibration motor, as a result changing the movement direction of the material.

Main Features

1 - Greater accuracy.

Full material flow on all mesh screens providing accurate grading and separation

2 - Lower noise.

The quality springs between machine base and vibrating body slow down the noise to less than 60 decibels

3 - Easy to operation and lower maintenance.

The design of the vibrator housing on these separators allow for standard motors to be used rather than vibratory type, keeping maintenance costs to a minimum.

4 - Reduces cleaning downtime.

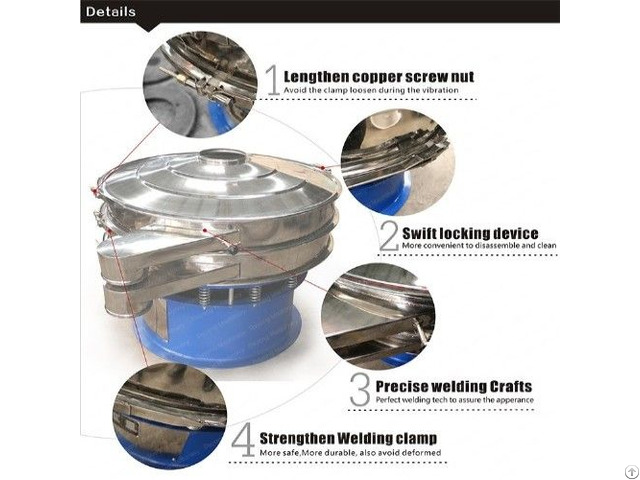

The unit disassembles quickly and easily without the need for tools.

All contact parts are fully washable.

Using Scope

1 - Chemical industry: resins, coatings, industrial chemicals, cosmetics, paints, herbal powder.

2 - Food industry: sugar, starch, salt, rice flour, milk powder, milk, egg, soy sauce, fruit juice.

3 - Metal, Mining: aluminum powder, lead powder, copper powder, ore, alloy powder, powder electrodes, manganese dioxide, electrolytic copper powder.

4 - Pollution treatment: oil, water, dyeing wastewater, chemicals, activated carbon.

Company Profile

Xinxiang Dayong Vibration Equipment Co., Ltd. is a manufacturer of vibrating screens, vibration feeder, tumbler screens, gyratory screens and conveyor with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in mining, pharmacy, food, chemical, metal powder and other industries.

DY series vibrating screen are our mainly products.

What's more, we have also linear vibrating screen, ultraasonic vibrating screen, test vibrating screen, converying machine, feeding maching and so on.

Our products have been widely used in the food industriy, chemical industry metal, metallurgy industry, and other industry.

Our Service

1 - Our company signs a long-time after-sale service agreement with customers.

2 - We provide rational and practical design according to customers' request.

3 - We send engineers to assemble and test the machine within the period as agreed in the contract.

4 - Within warranty period, we provide free repair if quality problems emerge.

5 - We provide free training of operation and maintenance for customers.

6 - We supply high quality accessories in low price.

7 - We make an excellent filing of customers for long-term following -up service.
