Small Size Mineral Powder Rotary Vibrating Screen - China

Product Parameters

Condition: New

Type: Circular

Model: as your requirement

Power: 0.55kw

Voltage: 220v/380v/450v

Dimension (L*W*H): 700*800*790mm

Weight: 170kg

Certification: ISO9001 & CE

Warranty: 18 months Working Principle

Rotary vibrating screen uses upright motor as the source of vibration, and it is equipped eccentricity hammer on the both sides of motor.

Adjust the phase angle on the both sides of the top and bottom to change the movement orbits of the surface screen.

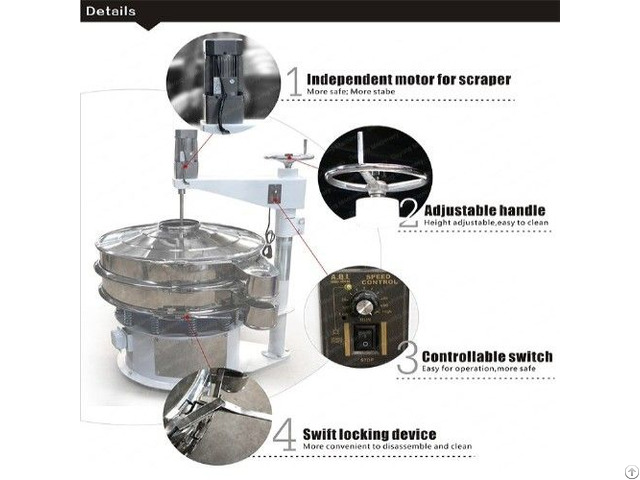

It can be equipped with screen cloth cleaning device to avoid clogging effectively.

The vertical and horizontal movement of the machine, the track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.

Main Features

1 - Suitable for screening any powder or particle material in metallurgy, chemical, abrasive, glass, ceramics, construction, light, food industry, etc.

2 - Small size, easy moving and space saving.

3 - High screening efficiency, do not mesh plug and powder fly, screen up to 500 mesh(0.028mm).

4 - Network for easy, simple, convenient cleaning, fastly change network for only 3-5 minutes.

5 - Automatic discharge of impurities and coarse materials, continuous operation.

6 - Can reach a maximum five-screen machines, the use of the three-tier proposal.

Using Scope

Vibrating sieve machine suitable for all kinds of powders, particles and liquids, Widely used in fertilizer, medicine and powder coatings, paints, cosmetics, oils, resin, ceramic slurry, clay mud, lime, refractory powder, powder metallurgy, magnetic powders, polishing powder, juices, beverages, sugar, salt, monosodium glutamate, spices, sewage, wastewater treatment processes milk, starch, wheat flour, rice flour, carbon, graphite, manganese powder, lithium carbonate, a co-solvent, fire extinguishing agents and environmental protection industries in the screening, filtering.
