Titanium Dioxide Stone Grinding Machine - China

Titanium dioxide stone grinding machine is a new type machine to grind Titanium dioxide Stone into super thin Powder.

The final Powder size can be from 5micron to 47micron as per 97% passing rate.

Titanium dioxide micro powder grinding mill is mainly applied to non-inflammable, non-explosive and brittle materials with Mohs hardness scale under seven, such as calcite, chalk, limestone, dolomite, carbon black, bentonite, kaolin, Titanium dioxide, mica, magnesite, illite, pyrophyllite, roseite, sea-foam, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rock phosphate, kalium ore, pumice etc.

totally more than 100 kinds of materials.

Finished powder products are in the 325meshs -3000meshs, and yield can be up to 0.5-12 tons per hour.

There are five types of Shanghai CLIRIK HGM series Titanium dioxide micro powder grinding mills; they are HGM80, HGM90, HGM100, HGM100A and HGM125 - Detailed Product Description about Titanium dioxide micro powder stone grinding machine

Titanium dioxide micro powder grinding mill is mainly applied to grind non-inflammable, non-explosive and brittle materials with Mohs’ hardness under six.

Such as calcite, chalk, limestone, dolomite, kaolin, gypsum, and Titanium dioxide, etc, totally more than 100 kinds of materials.

Product fineness can be controlled between 300~3000 mesh (47~5 micron)

Comparable with ball mill, Titanium dioxide grinding mill has features of low cost, high capacity, easy operation; Comparable with Raymond mill for coarse powder up to 325 meshes, it can produce fine powders between 47 and 5 microns (300 to 3000 meshes) Production Line Configuration of Titanium dioxide stone grinding machine

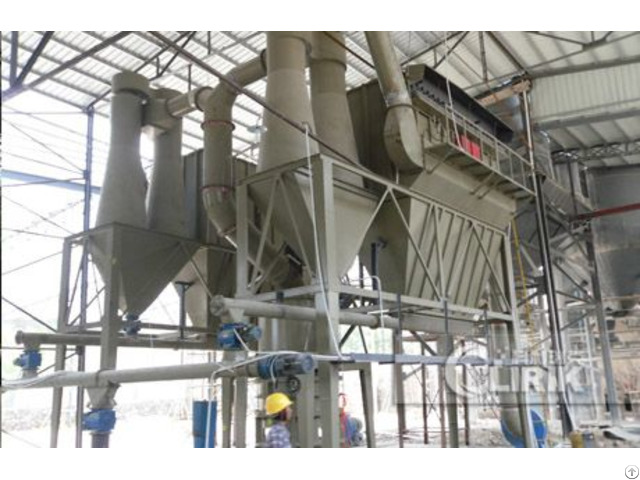

The whole set HGM Titanium dioxide grinding mill consists of hammer crusher, bucket elevator, storage hopper, vibrating feeder, main unit, inverter classifier, cyclone collector, pulse deduster system, high pressure positive blower, air compressors and electrical control systems

Performance and features of Titanium dioxide stone grinding machine 1 - High efficiency

Under the same final size and power, the product capacity of micro powder micro powder grinding mill is twice than jet mill and agitation mill.

2 - Long lifetime of wearing parts

The roller and ring are made of special material, which improve the grinding efficiency a lot.

For same material and final size, the lifetime of its wearing parts can reach to more than one year, about 2-5 times as long as that of vertical impact crusher and turbo-mill.

Especially when handling calcium carbonate and calcite, the lifetime can reach 2-5 years.

3 - High safety and reliability

There are no rolling bearings and bolts in grinding cavity, so problems caused by bolts shedding or wear of bearings and seal components will never happen.

4 - High fineness of products

The product fineness can reach D97≤5μm.

5 - Environment friendly

The application of DMC-120 pulse dust collector and muffler reduce the pollution and noise of the dust, which has reached national environment protection standard
