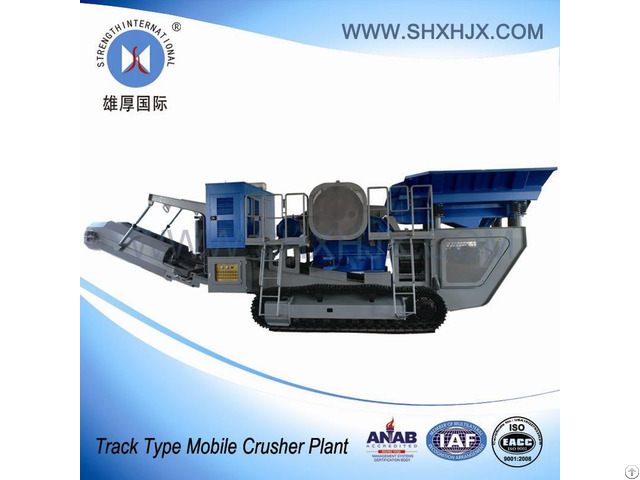

Track Type Mobile Crusher Plant With 120 180 Tph Capacity - China

The track type mobile crusher plant could saving the preparing time for foundation building compare with the traditional fixed crusher.

Flexible combination between each unit to fully satisfy different crushing and screening demand.

Jaw crusher unit

The jaw crusher unit adopt the jaw crusher which is designed newly by our company with high level crusher rate and capacity.

It is more advanced than normal crusher with feature of compact structure, light weight, perfect appearance, and to use full hydraulic adjusting system to adjust discharge opening in stead of operated manually.

Model: PE5080

Feed Opening Size (mm): 500×800

Producing Capacity (t/h): 80-130

Working Dimension (mm)(L×W×H): 10000×4000×4200

Transport Dimension (mm)(L×W×H): 10000×2720×4200

Weight (kg): 23000 Model: PE5080

Feed Opening Size (mm): 600×1000

Producing Capacity (t/h): 120-180

Working Dimension (mm)(L×W×H): 10500×4000×4200

Transport Dimension (mm)(L×W×H): 10500×2720×4200

Weight (kg): 28500 Model: PE5080

Feed Opening Size (mm): 750×1100

Producing Capacity (t/h): 160-230

Working Dimension (mm)(L×W×H): 13500×4300×4560

Transport Dimension (mm)(L×W×H): 13500×3000×3990

Weight (kg): 35500

Impact crusher unit

The impact crusher unit adopt the impact crusher designed newly by our company, with large capacity for crushing, it is more advanced than normal impact crusher with feature of compact structure, light weight and big feed size and perfect appearance.

Model: PF1008

Feed Opening Size (mm): 550×800

Producing Capacity (t/h): 80-120

Working Dimension (mm)(L×W×H): 13900×4535×3535

Transport Dimension (mm)(L×W×H): 12000×2665×3535

Weight (kg): 31500 Model: PF1010

Feed Opening Size (mm): 550×1000

Producing Capacity (t/h): 121-180

Working Dimension (mm)(L×W×H): 13900×4535×3555

Transport Dimension (mm)(L×W×H): 13000×2665×3535

Weight (kg): 33800 Model: PF1313

Feed Opening Size (mm): 600×1300

Producing Capacity (t/h): 150-250

Working Dimension (mm)(L×W×H): 15000×4535×3850

Transport Dimension (mm)(L×W×H): 13500×3200×3400

Weight (kg): 38200 Screening unit

Screening unit adopt the vibrating screen which is designed newly by our company, the vibration exciter of screen designed with advanced design concept.

It features high vibrating efficient, compact structure and big producing capacity.

Model: 2YK1542

Mesh Size (mm): 1500×4200

Producing Capacity (t/h): 250

Working Dimension (mm)(L×W×H): 15375×5390×4800

Transport Dimension (mm)(L×W×H): 13350×2670×3360

Weight (kg): 25000 Model: 2YK1548

Mesh Size (mm): 1500×4800

Producing Capacity (t/h): 300

Working Dimension (mm)(L×W×H): 15560×5560×4800

Transport Dimension (mm)(L×W×H): 13570×2670×3360

Weight (kg): 27500 Model: 2YK1848

Mesh Size (mm): 1800×4800

Producing Capacity (t/h): 400

Working Dimension (mm)(L×W×H): 15580×5890×5200

Transport Dimension (mm)(L×W×H): 13580×2990×3420

Weight (kg): 31500 Pre-sales Service

* Offer professional suggestions for equipment selection.

* The equipment can be modified the design according to

customers requirements besides standard model.

* Planning site and offer the suitable flow schemes.

In-sales Service

* Follow up on the progress of the production and quality of

the equipment.

* Ensure the delivery, offer relative drawings, and record the

trial run.

* To assistant customer checking and acceptance the

equipment.

After-sales

* Send professional technicians to assist in installation, commissioning and operation in production site.

* Training the operator and maintainer to ensure the normal operation of the equipment.

* For any troubles aroused under warranty, we will offer solutions within 48 hours and send technician to reach the site ASAP if needed.

About Xionghou

Shanghai Xionghou Machinery Manufacturing Co., Ltd. provides you an overall solution for your mine project with a production capacity ranging from 40t/h to 600t/h complete crushing and screening plants which including vibrating feeders, primary and secondary crushers, screens, sand makers, sand washers, grinding mills, conveyors, dust collectors, centralized electronic control and associated equipment.

Xionghou’s professional technology and after-sales service team provide customer the whole mining operation, including geological survey, production line design, equipment assembly, commissioning, debugging, training, safety production management, and relative services.

For equipment problems, we would serving the customers with timely solutions to resume production and do an analysis after that.
