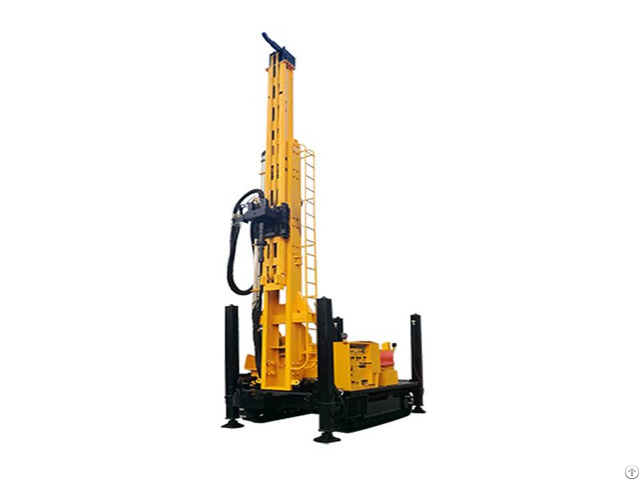

JKS400SH Crawler Mounted Telescoping Mast Drill Rig

Crawler Mounted Versatile Well Drilling Rig

hydraulic drilling rig, hydraulic drill rig

The rig is able to place casing of 6 meters.

Rated Drilling Depth

400m

Site Condition

It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.

Product Features

JKS400SH crawler mounted telescoping mast drill rig is a new, efficient, multifunctional hydraulic well drilling rig, mainly applicable to the drilling process of well, monitor boreholes and geothermal boreholes.

When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, the penetration speed being dozens of times quicker than conventional rotation rigs.

The rig is able to handle casing size up to 6 meters.

In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions

Hydraulic supporters used facilitate the rig erection on site without crane.

Rated Drilling Depth 400m

Borehole Diameter 140~350mm

Engine Power 92kW

Max.

Lifting Force 20T

Axial Pressure ± 8T

Lifting Force of Small Winch 1.5T

Rotation Torque 8500N.

m

Rotation Rate 0～40/80rpm

Feeding Stroke 4300mm+2600mm

Hydraulic Supporting Leg Stroke 1650mm

Lifting Speed 0～25m/min

Centralizer Height 0.8m

Grade Ability 15°

Dimension (L x W x H) 7.4m x 2.25m x 2.85m

Weight 13.5T

Hydraulic Generator 24kW/380V (optional)

Flow of Centrifugal Mud Pump /

Flow of Plunger Mud Pump /
