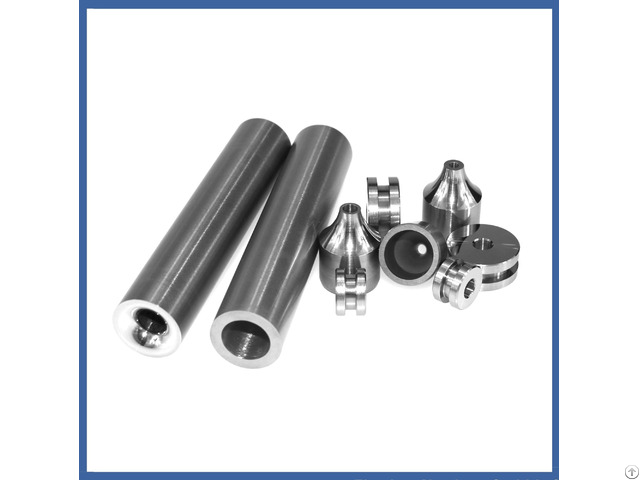

Tungsten Carbide Throat For Jet Pump - China

The application of tungsten carbide nozzle and throats ( Mixing Tubes ) in Jet Pump

The jet pump operates by pumping power fluid at high pressure and rate from surface to activate/drive a downhole pump.

Looking at the downhole jet pump, there are three main components:

• Nozzle

• Throats ( Mixing Tubes ) • And Diffuser.

Tungsten carbide nozzle and throats ( Mixing Tubes ) are the key components of a jet pump.

The ratio of the areas of these two parts is known as the area ratio of the pump and it determines the performance characteristics of the pump.

Pumps with the same area ratio have the same performance and efficiency curves

Jet Pumps operates on Venturi principle.

Above the JP, before entering Tungsten carbide nozzle, the power fluid has high pressure (designated as PN) and low flow velocity.

While the power fluid passes Tungsten carbide nozzle, due to the decrease in flow area it is transformed from low velocity, high static pressure flow to a high velocity, low static pressure flow (PS).

This creates a pressure drop below Tungsten carbide nozzle which drives the reservoir fluids into the pump.

Inside Tungsten carbide throats ( Mixing Tubes ), the power fluid mixes with reservoir fluids.

This area must be able to pass the power fluid as well as the liquids and gas being produced.

The area in the pump that must accommodate just the produced fluids (liquid and gas) is the annular area between Tungsten carbide nozzle and the throats ( Mixing Tubes ) and it is this area that determines the cavitation characteristics of the pump.

Company Contact:

• Posted By: Zhuzhou Beifang Cemented Carbide Co., Ltd

• Phone: 19313258795

• Address: Zhuzhou city, Hunan State, China, Zhuzhou , Hunan , China

• Email:

• Website: https://bf-carbide.com/

• Business Description: Deep-processing Tungsten Carbide Manufacturer with over 18 Years’ Experience

  Zhuzhou Beifang Cemented Carbide Co., Ltd, was established in 2017 and is located in Railway Traffic City Industrial Park, No.

  455, Zhongche Avenue, Jinglong Street, Shifeng District, Zhuzhou City, Hunan Province, China.

  Based on our experience, we provides the most effective solution for you on tungsten carbide parts.

  Products market

  Currently, our main market is Europe, North America, South America, Australia, Africa and south Asia, we are selling our product to over 15 countries, which including to India, Singapore, Malaysia, North Korea, Canada, United States, Argentina, Brazil, Colombia, Mexico, Ecuador, Egypt, France and United Kindom.

  Product Range

  Our main products include

  1 - Deep-processing tungsten carbide rods, tubes, plates.

  2 - Various kinds of deep-processing non-standard parts that resist abrasion, acid, alkali and erosion;

  3 - Deep-processing composite work-pieces of tungsten carbide and steel.

  4 - Widely used in industries of petroleum, petrochemical, subsea oil fields, mining mechanism, electron, battery, steel rolling, alumina, war industry and so on.

  5 - Valve seat, Gas lift valve seat,Carbide nozzle, Carbide throat, carbide bushing , carbide sleeve, carbide ball.

  6 - Customized tungsten carbide component according to client requirement.
