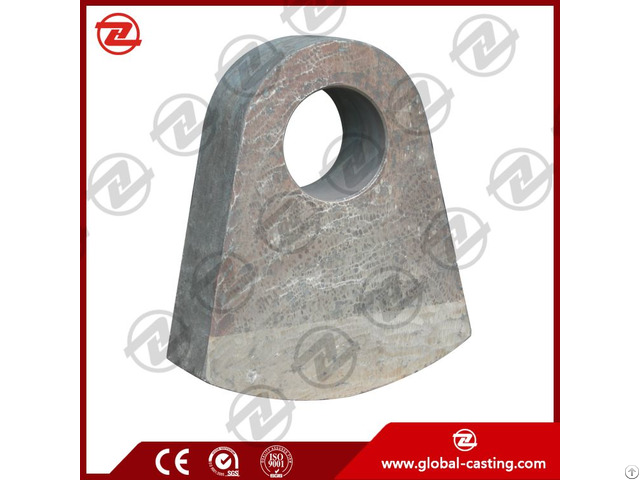

Zhili Bimetallic Composite Hammer - China

price: 40.00 Dollar US$

Feature of bimetallic composite:
Our patent products with independent research and development (China Patent No. 200810049101.2) --- Bimetal thermal-composite material.
Bi-metal composite materials: working lifetime up to 2-3 times of traditional single material, especially used in large ball mill liner.
It is our patent products with independent research and development (China Patent No. 200810049101.2) --- Bi-metal thermal-composite material.
This product adopts special technology and professional process to combine two materials with different performance into a whole one under molten condition. The interface of combining is up to 100%.
The hardness of bi-metal thermal composite material is up to HRC62-65.
Its impact ductility is over (AK) 30J/cm2.
It has high anti-friction effects and safe reliability.
It is especially used to produce hammers and board hammers used in large crushers, liners used in large ball mill crushers. Effects can be more remarkable when it is used in harsh environment, other crushing conditions like limestone, cement clinker, sand stone, coal spoil, basalt etc.
Chemical Component Ratio(%)
Working part Hammer Body
C Mn Cr Mo Ni Cu Si C Mn Si
2.0~3.3 0.8~1.2 18~22 ≥0.8 0.4~0.6 0.8~1.2 ≤0.8 0.33~0.36 0.60~0.80 0.4~0.5


Company Contact:


  • Phone: 0379-63633777

  • Address: 2-2701,NO.85 Nanchang Road,Jianxi District, Luoyang, AA, China

  • Email: Email


Published date: June 29, 2017 - Modified date: June 29, 2017

  • Business Description: Luoyang Zhili New Materials CO., Ltd was founded in 1995, Which specialized in producing wear- resistant steel company, professional of the crusher hammer. We passed the ISO9001:2000.
    The company covers an area of 25, 800 square meters, The workshop has 12, 000 square meters. The annual production capacity is 3 millions tons. Our anti-friction and wear-resistance products scope as below: the series of bimetal thermal-composite materials, alloyed high-manganese & super high-Manganese material, Medium high alloy steel materials, high-chromium alloy iron materials etc.
