Automatic Cnc Wheel Lathe Machine Ck6187w - China

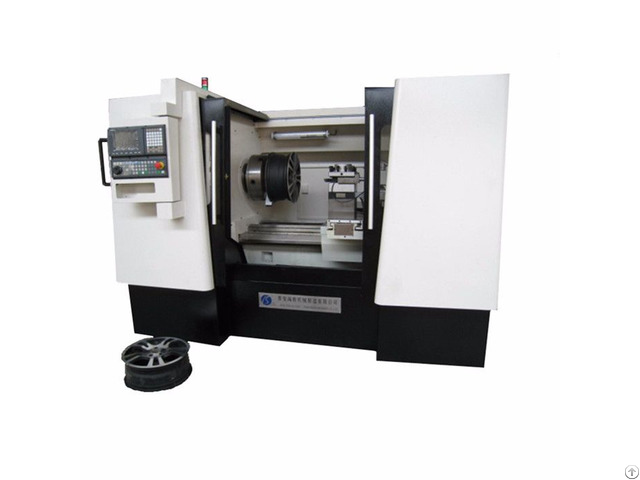

Automatic Cnc wheel Lathe Machine CK6187W onfigurations except the maximum wheel diameters.

They are high precision, cost-effective and space-saving.

These car CNC wheel lathes are your best choice for wheel machining, super-finishing and maintenance.

Car wheel CNC lathe is composed of self-made mechanical parts such as the cast steel bed, spindle, fixing chuck and the feeding mechanism, the imported numerical control system, the automatic measuring system, the famous brand servo motors and the auxiliary parts like lubrication, light and cooling.

Automatic Cnc wheel Lathe Machine CK6187W Technical parameters Project name

Unit

Technical paramaters

Max.

turning diameter over the bed

Inch

34”(φ870mm)

Machining diameter of the wheel

Inch 30

Max.

machining length of the workpiece mm

750

CNC system SYNTEC or TOUCH SCREEN

Detection type Laser probe or touch probe

Machning accuracy IT6-IT7

Surface roughness

um

Ra0.8~1.6

Main transmission form Independent spindle; frequency conversion stepless

Range of spindle speed

rpm

150~2000

Main motor power

kw

11

Fast-moving feed

mm/min

X - axis: 5000 Z - axis: 8000

Repeat positioning accuracy

mm

X - axis: 0.01 Z - axis: 0.015

Standard accessories 4 station electric tool

Repeat positioning accuracy(mm)

mm

0.008

Section of turning tool(mm)

mm

25×25

The size of the machine

(L×W×H)

mm 2680×1820×2050

Net weight of the machine(kg)

3600 Automatic Cnc wheel Lathe Machine CK6187W Main features

1 - Automatic laser scanning and fast measurement.

2 - Wheel data is acquired, processed and stored automatically .

3 - Self-developed CNC software, automatically program optimization.

4 - Precise and fast wheel processing.

5 - Touch screen operation, support multiple languages

6 - X / Z axis measurement, wheel surface and circumferential machining.

7 - Three-color warning lights.

8 - Automatic lubrication system.

9 - Diamond cutting.

10 - The machine can be customized according to customer requirements.

Automatic Cnc wheel Lathe Machine CK6187W Uses

1 - The machine tool suitable for High-precision turning and repair processing for surface of car wheel.

2 - The machine tool has also the function of the general CNC lathes .
