Casing Pipe Threading Machine Slant Bed - China

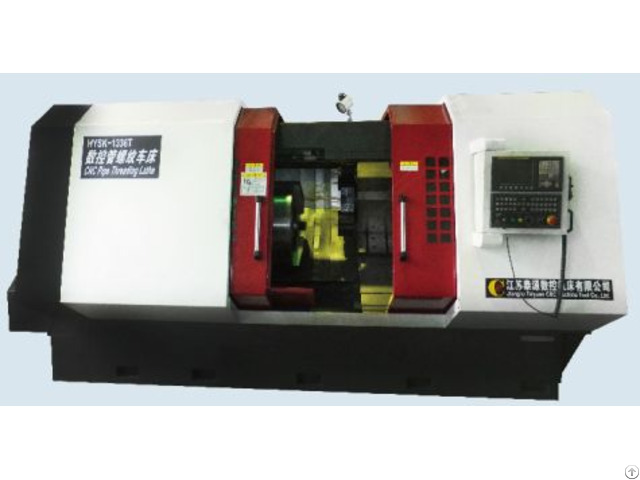

This series lathe machine is special for threading casing pipe, it is high

accuracy, high rigidity, big power machine.

Horizontal integral cast iron

machine bed, bed guide rail 45°slant, machine operating and tool

setting is convenient .

Use 8-station or dual immovable tool

rest, Fanuc CNC system, super spindle rigidity, spindle box outside cycle

oil cooling, centrifugal water pump cooling, dual pneumatic chucks, improved the working efficiency.

It is the ideal machine for casing pipe.

Items Unit HYSK-1316 HYSK-1322 HYSK-1336 HYSK-1355

Max.

swing diameter over bed ㎜ φ550 φ650 φ880 φ1200

Max.

swing diameter over saddle ㎜ φ300 φ350 φ350 φ600

Max.

machining diameter ㎜ φ150 φ215 φ340 φ540

Max.

machining length ㎜ 300 300 300 300

Spindle bore diameter ㎜ φ160 φ220 φ360 φ550

Range of thread machining Round thread, buttress thread, trapezoidal thread Round thread, buttress thread, trapezoidal thread Round thread, buttress thread, trapezoidal thread Round thread, buttress thread, trapezoidal thread

Spindle bore speed r/min 20～950 20～450 50-320 50-200

X-axis travel ㎜ 350 400 400 400

Z-axis travel ㎜ 700 800 800 800

X/Z servo motor Nm 20/20 27/27 27/27 27/27

Main motor power kW 22 30 37 37

Rapid movement speed m/min 8/10 8/10 8/10 8/10

Pneumatic chuck diameter ㎜ 480 530 735 1000

Spindle center height ㎜ 1100 1100 1150 1200

Rear tool rest NO.

8 stations 8 stations 8 stations 8 stations

Front tool rest NO.

1 station 1 station 1 station 1 station

Roughness mm Ra1.6 Ra1.6 Ra1.6 Ra1.6

Machine weight ㎏ 7600 8900 11800 22000

Machine dimension(L×W×H) mm 3400*1700*1950 3400*1700*1950 5200*2400*2400 5300*2500*2500
