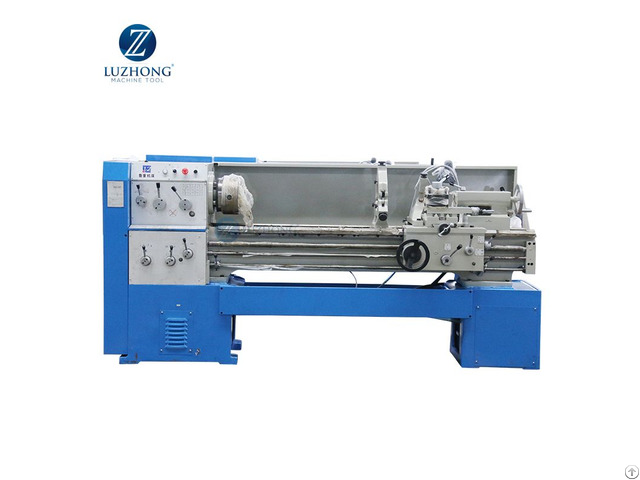

Ck6130 C6132 Automatic Small Cnc Good High Precision Mini Lathe - China
price: 4700.00 Dollar US$
Specifications
specifications units ck6130 ck6132 cqk6136
swing over bed mm 300 320 360
swing over cross slide mm 100 110 150
distance between centers mm 500/700 500/700 500/700
spindle bore mm 60 60 60
spindle bore taper - mt6 mt6 mt6
spindle nose type - a2-5 a2-5 a2-5
spindle speed steps - stepless stepless stepless
spindle speed range rpm 100-2000 100-2000 100-2000
turret/tool post - electric 4 position electric 4 position electric 4 position
tool size mm 20 x 20 20 x 20 20 x 20
x axis travel mm 160 170 180
z axis travel mm 500 500 500/750
x axis rapid traverse mm/min 6000 6000 6000
z axis rapid traverse mm/min 8000 8000 8000
tailstock quill diameter mm Φ50 Φ50 Φ50
tailstock quill taper - mt4 mt4 mt4
tailstock quill travel mm 90 90 90
main spindle motor kw 4 4 4
coolant pump motor kw 0.09 0.09 0.09
machine weight kg 800 850 900
overall dimension mm 1500x1000x1600 1500x1050x1750 1500/1800x1150x1850
Company Contact:
- Posted By: Shandong Luzhong Machine Tool CO., LTD
- Phone: 86-0632-5083086
- Address: East of Luban Avenue,Tengzhou City,Zaozhuang City,Shandong Province,China, Tengzhou Shandong Province China, In the business, China
- Email:
Published date: June 2, 2021
- Business Description: -Machine center
-Lathe machine
-CNC lathe machine
-Milling machine
-Drilling machine
-Band sawing machine
-Boring machine
-Hydrulic press machine
-Metal forging machine(Air hammer,Slotting machine,Shapping and Gear hobbing machine)
-Sheet metal machine(Bending machine,Shearing machine,Rolling machine,Combined punching and shearing machine,Combination of Shear Brake Roll Machine)
Whatsapp/wechat: +86 15163203317
Email: crom@lu zhongmc.
com
