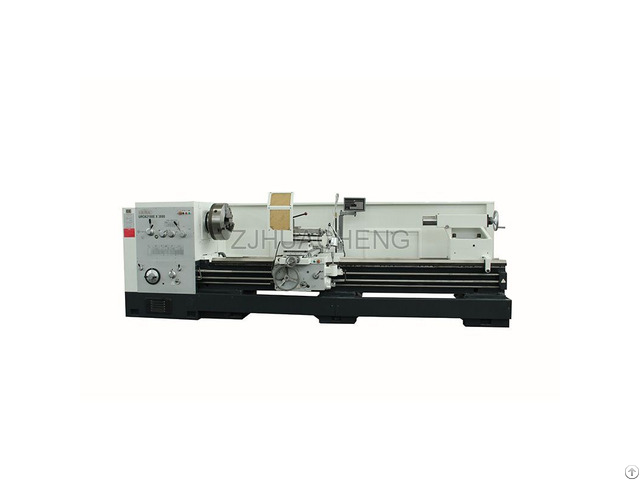

Cw E Unniversal Lathe - China

CW-E series machine is the universal lathe, suitable for high speed steel and hard alloy steel cutting tools

More information you can visit our website

MODEL CW61(2)63E CW61(2)80E CW61(2)100E CW61(2)120E

CAPACITIES

Max.

swing over bed 630mm 800mm 1000mm 1200mm

Max.

swing over cross slide 350mm 485mm 685mm 800mm

Center distance 1000 1500 2000 3000 4000 5000 6000 8000 10000mm

Max.

swing over gap 830mm 1000mm 1200mm 1400mm

Valid length of gap 300m

Bed width 550mm

Max weight of workpiece 3T

HEAD-STOCK

Spindle hole 105mm OR 130mm (OPTIONAL FOR CW6180E+)

Spindle nose D-11

Spindle taper 1: 20

Spindle speeds(Number) 14-750RPM(18 STEPS)

GEAR BOX-THREADS & FEEDS

Metric threads range(kinds) 1-240mm(54 kinds)

Inch threads rangs(Kinds) 28-1 inch(36 kinds)

Moudle threads range(kinds) 0.5-60 DP(27 kinds)

Diametral threads range(kinds) 30-1 t.p.i.

(27 kinds)

Longtudinal feeds range(kinds) 0.048-24.3mm/r (72 kinds)

Cross feed range(kinds) 0.024-12.15mm/r (72 kinds)

Rapid feed: Long.

/Cross 4/2m/min

Leadscrew size: Diameter/Pitch T48mm/12mm OR T55mm/12mm(optional for 5M+)

CARRIAGE

Cross slide travel 350mm 420mm 520mm 620mm

Compound rest travel 200mm

Size of tool shank 32*32mm

TAILSTOCK

Spindle diameter 100mm 120mm

Spindle taper MORSE #6

Spindle travel 240mm

MOTOR

Main drive motor 11kw

Coolant pump motor 0.09kw

Rapid feed motor 1.1kw

Center distance: NET WEIGHT

1500mm 4500kg 4800kg 5000kg 5500kg

2000mm 4800kg 5100kg 5300kg 5800kg

3000mm 5800kg 6100kg 6300kg 6800kg

Center distance WEIGHT FLOOR SPACE(L*W*H)

1500mm 3452*1326*1790 mm

2000mm 3952*1326*1790 mm

3000mm 4452*1326*1790 mm Huasheng-Light-duty Universal Lathe is the universal lathe, suitable for high speed steel and hard alloy steel cutting tools

Suitable for high-speed steel and hard alloy steel cutting tools to process different materials of shaft parts, cylindrical and disk parts in turning outer circle, end face, grooving, cutting, boring, turning and boring inner cone, various threads and other processes.

Machine casting has strong rigidity;

The cross slide, tool rest and bed saddle can move quickly;

1-4M lathe machine is the split-type Lathe and 5M + is integral type;
