Drill Collar Spiral Milling Machine - China

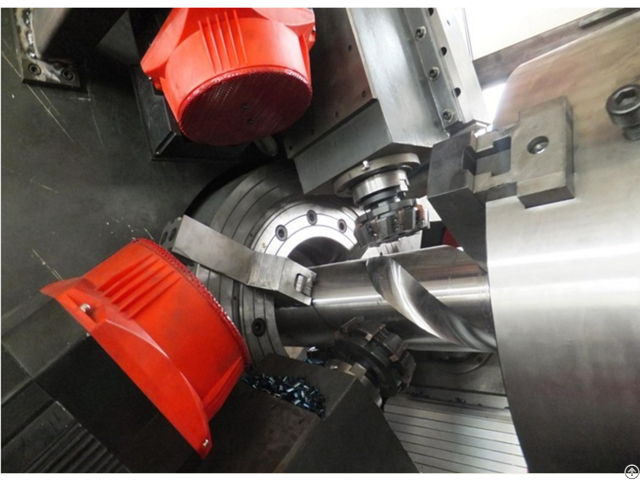

Drill collar spiral milling machine is the specialized cnc machine tool for milling drill collar, use three milling cutters cut the mutual 120°spiral groove of drill collar at the same time.

X1, X2, X3 moving are controlled by CNC system and servo motor.

Items Unit LXK320HY

Cutter spindle speed range r/min 80～500

Cutting speed range r/min 80～160

Cutter diameter mm φ200

X-axis Max.

travel mm 150

Z-axis Max.

travel mm 10000

Manual chuck diameter mm φ780

Pneumatic chuck diameter mm φ730

The range of machining diameter mm φ100～φ310

Machine feeding speed ƒx≤4m/min；ƒz≤5m/m in；ƒc≤3r/min

X-axis quick movement speed m/min 6

Z-axis quick movement speed m/min 6

X1 radial feed speed m/min ≤4

X2 radial feed speed m/min ≤4

X3 radial feed speed m/min ≤4

Setting accuracy of position mm 0.001

X1 X2 X3 motor torque Nm 20

C-axis motor torque Nm 27

Z-axis motor torque Nm 27

Spindle center height mm 880

Roughness mm Ra3.2～Ra6.4

Machine weight ㎏ 20000

Machine dimension(L×W×H) mm 14750*2450*2150
