Electric Motor Bearing - China

Electric Motor Bearing

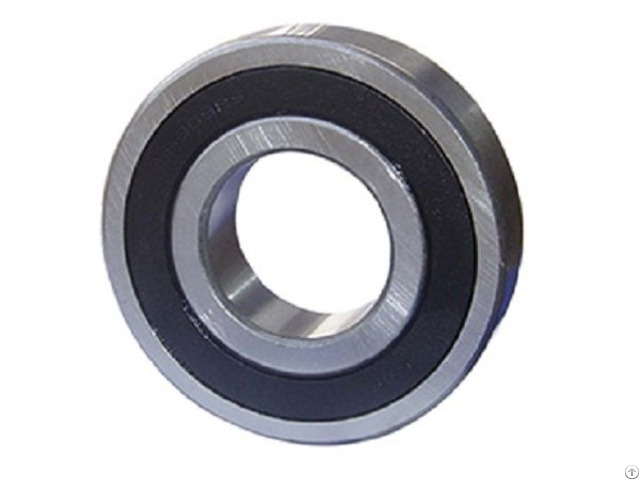

6308 2RS bearing

The 6308-2RS is a 40 mm ball bearing that can be used in many applications.

6308-2RS ball bearings have two contact rubber seals located on each side of the ball bearing.

6308 2RS bearing rincipal dimension

Bearing No.

6308-Z/2Z/RZ/RS/2RS/2RZ

I.D. 40mm

O.D. 90mm

Width 23mm

Weight(Kg) 0.63mm

Bore Type Straight

Closure Type Two Contact Seals

Snap Ring Included Without Snap Ring

Internal Clearance C0

Maximum Operating Temperature 120℃

Dynamic Load Capacity 9149.72395743783 lb

Static Load Capacity 5395.41461863656 lb

Precision Rating ABEC 1

Bearing Material Steel

Feature Super finished raceways Quiet operations, Low noise ISO standard interchangeable dimensions Electric Motor Quality (EMQ) Contact seal(s) offer superior lubricant retention and bearing protection from contaminants long life high temperature resistance of motor-bearing

Company Contact:

• Posted By: Hebei Nicer Technology Bearing Co., Ltd

• Phone: 86-0311-87784340

• Address: No.98, Xiying Industry Area, North Youyi Street, Shijiazhuang , Hebei , China

• Email:

• Website: https://www.nicerbearing.com/

• Business Description: Hebei Nicer Technology Bearing Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province in China, established in 2011 - The factory area is about 3200 m2 - There are more than 40 sets of advanced manufacture machines and inspection instruments in our factory.

  Daily production capacity is about 3000 pieces of bearings.

  The main products are standard bearings, such as deep groove ball bearings, tappered roller bearings, cylindrical roller bearings, widely used in electric mortor, speed reducer, pump, etc.

  We also produce non-standard bearing used in overhead conveyor, such as chain wheels, trolley wheels and roller turn rollers.

  In 2018, we developed long-life conveyor bearing with patented technology.

  Machining shaft, bushing block and flange for customer is our another business.
