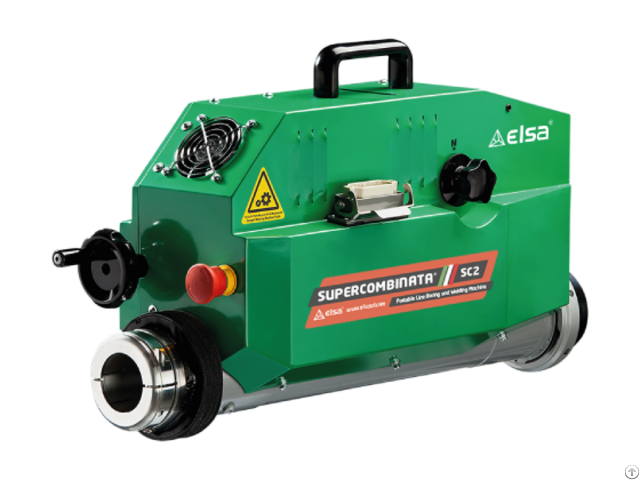

Elsa Supercombinata Sc2 - Italy

The Supercombinata SC2, thanks to its standard equipment, is suitable to perform internal line boring and internal and external overlay welding within a working range from Ø 62 mm to Ø 600 mm.

It’s suitable for drilling and tapping.

By means of extra kits, it is suitable to perform external line boring, facing of orthogonal planes and creation of circlips grooves, threading.

With additional accessories, the Supercombinata can be adapted to many different needs of our customers.

DIAMETERS Boring bar diameter: ø 60 x 2200 mm In line boring: ø 62 – 600 mm External line boring: Extra kit Internal welding: ø 42 – 600 mm External welding: ø 42 – 400 mm Drilling: Optional accessories Tapping: Optional accessories Threading: Extra kit Facing of orthogonal planes: Extra kit ROTATION MOTOR AC motor: Single phase Power at rated speed: 1800 W Gearbox: 4-speed Output torque at the bar: Up to 520 Nm with 65 rpm FEED MOTOR Gear motor: DC Power at rated speed: 90 W Max.

speed: 11 rpm Feed system: Electromechanical Feed: Manual/Automatic WELDING TECHNOLOGY Spiral: Continuous with variable step Welding machine: Compatible with MIG/MAG welder with EURO connector LONGITUDINAL STROKE Unlimited: With 350 mm pitch ELECTRONIC CONTROL PANEL Voltage: 220/240 V (50/60 Hz) Main switch: Available Emergency switch: Available Inverter feed: RH/LH Inverter rotation: CW/CCW Speed regulator: Rotation/Feed Electrical absorption: 2000 W Control panel 110/120 V: Upon request Digital control panel: Upon request DIMENSIONS Length: 680 mm Width: 240 mm Height: 380 mm Weight central unit: 36 kg STANDARD EQUIPMENT Qty 1 - Main unit Qty 1 - Boring machine stand Qty 1 Electronic control panel Qty 1 - Control panel holder Qty 1 - Cable control panel/machine Qty 1 - Power cable 220 V Qty 1- Boring bar ø 60x2200 mm Qty 1 - Boring bar extension 520 mm Qty 2 - Pivot Qty 1 - Tool holder for boring d.

120-250 mm Qty 1 - Tool holder for boring d.

250-600 mm Qty 1 - Tool holder LH ø 12x50 mm Qty 1 - Tool holder LH ø 12x60 mm Qty 1 - Special tool holder LH ø 12x60 mm Qty 1 Tool holder LH ø 12x80 mm Qty 1 - Tool holder RH ø 12x100 mm Qty 1 - Box with 10 cutting inserts Qty 1 - Adjusting plug for tool holder Qty 2 - Main bar support Qty 2 - Additional support Qty 18 - Bracket Qty 4 - Flanges support d.

250-600 mm Qty 1 - Telescopic shaft for welding Qty 1 - Reduction bushing drawing torch Qty 1 - Reduction bushing locking torch Qty 5 - Diffuser extension 35 mm Qty 3 - Diffuser extension 100 mm Qty 4 - Short gas nozzle Qty 4 - Long gas nozzle Qty 5 - Short contact tip ø 0, 8 mm wire Qty 5 - Long contact tip ø 0, 8 mm wire Qty 1 - O-ring for welding shaft 100x5 mm Qty 1 - Terminal lance for external welding Qty 1 - Centring system d.

250-600 mm Qty 1 - Centring system for through holes Qty 1 - Centring system for blind holes Qty 1 - Telescopic gauge up to ø 600 mm Qty 1 - Dial gauge Qty 1 - Dial gauge support Qty 1 - Set of wrenches Qty 1 - Screws and bolts EXTRA KITS BORING REDUCTION KEP00594 Ø 22 - 44 mm (0, 87” - 1, 73”) KEP00593 Ø 32 - 70 mm (1, 26” - 2, 76”) KEP00688 Ø 42 - 160 mm (1, 65” - 6, 30”) KEP00687 for jobs with KES00186/KES00200 FACING KES00186* Ø 48 - 255 mm (1, 89” - 10, 04”) KES00200* Ø 56 - 400 mm (2, 20” - 15, 75”) KES00363 Ø 228 - 500 mm (8, 98” - 19, 68”) *SC2 / SC3 compatible by using KEP00687 INTERNAL THREADING KFL00927 Ø 120 - 350 mm (4, 72” - 13, 78”) OD MACHING KEL00202 Ø 100 - 200 mm - D.

200 mm (3, 94” - 7, 87”) KEL00203 Ø 150 - 300 mm - D.

300 mm (3, 94” - 11, 81”) BIG DIAMETERS KED00360 Ø 600 - 800 mm (23, 62” - 31, 50”)
