Horizontal Machine Tool Ck6432 Cnc Lathe - China

price: contact company for price

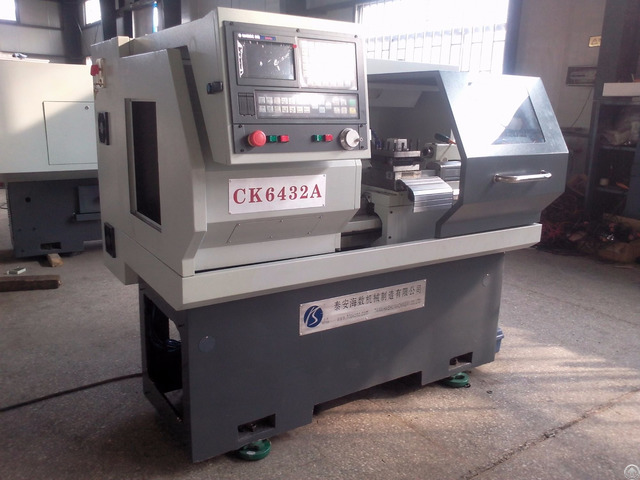

Horizontal Machine Tool Ck6432 Cnc Lathe

Products Photos Catalog Horizontal Machine Photos Catalog

Horizontal Machine Tool CK6432 is a kind of widely used horizontal CNC lathe equipped with powerful CNC system, a four-station electric turret, automatic lubrication system and the cooling system.

HAISHU brand CNC Turning Machine CK6432 is preferable for for metal cutting, turning or drilling functions.

This kind of CNC lathe provides stability, rigidity and accuracy for a variety of applications.

All our CNC lathes can be custom design and fabricate by your requirement.

Horizontal Machine Tool CK6432 specifications:

Item

Project name

Technical paramaters

CK6432A

technical specifications

Max.

swiming over the bed dia.

(mm)

Φ360

Max.

swiming over pallet(mm)

Φ150

Max.

the workpiece length(mm)

450 Main transmission

Main transmission form

Independent spindle, stepless frequency conversion timing

Number of spindle speeds

stepless

Range of spindle speed(r/min)

100~2500

Spindle centering axial taper

MT6

Spindle bore(mm)

60mm

Chuck size(mm)

200mm

Main motor power(kw)

4kw Feed system

Turret maximum stroke(mm)

X - axis: 260 Z - axis: 750

Fast-moving feed(mm/min)

X - axis: 6000 Z - axis: 8000

Repeat positioning accuracy(mm)

X - axis: 0.01 Z - axis: 0.015

Workpiece accuracy

IT6-IT7

Workpiece surface roughness

Ra1.6 tailstock

Dia.

of tailstock quill(mm)

Φ60

Tailstock quill stroke(mm)

100

Taper of tailstock quill

MT4 Tool post

Standard accessories

4 electric tool post

Opinional accessories

gang-type tool carrier or 6 tool post Repeat positioning accuracy(mm)

0.008

Section of turning tool(mm)

20*20 Size and weight

The size of the machine

(length*width*height)( mm)

1815*1165*1800

Net weight of the machine(kg)

1450


Company Contact:


  • Phone: +8613562857553

  • Address: Shankou town, Taian , Shandong , China

  • Email: Email


Published date: July 7, 2018

  • Business Description: Taian Haishu Machinery CO., LTD was found ed in 2001, mainly produce cnc lathe, cn c machine centers, all through CE.
