Land Oil Drilling Rig 1000m 7000m Completed Service - China

Land Oil Drilling Rig / 1000m-7000m Completed Service Drilling Rig

Product Description

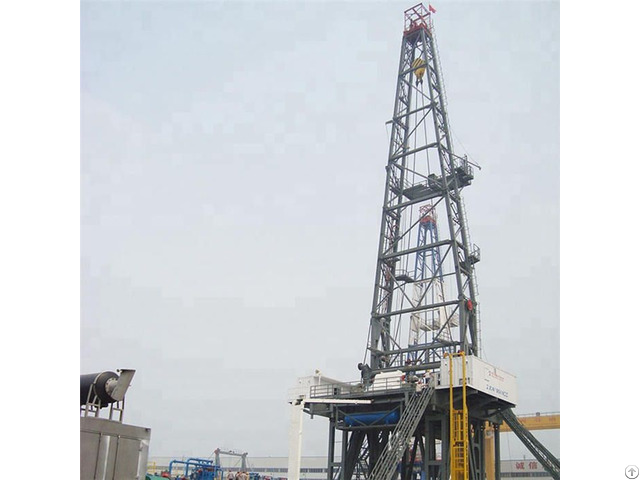

HFY30/1700J rig is mechanically driven rig, backstage drive in the form of two 12V190 diesel-powered rig, driven by a belt and car drawworks, mud pumps, energy generator or compressor.

Winch with the turntable, the background and the car drive unit with integrated design, installation and transportation is very convenient.

HFY30/1700J rig derrick hoisting winch power.

Derrick at the lower levels, without winch powered by independent hydraulic lifting system to complete the process of release from the derrick.

Has a small footprint, low mast installation, safe and reliable.

Parameter Value Parameter Value

Nominal drilling depth 5in DP 3000m 4 1/2inDP: 3500m Max.

hook load 1700Kn

Line strung of hoisting load system 5X6 Wrie line dia.

Ф29mm

Max pull of fastline 100Kn Max input power of drawworks 194kw

Drawworks speeds 3F+1R Primary brake Band brake

Aux.

brake Eddy brake Drum size(D×L) 400x600mm

Hook hoisting speed 0-0.72m/s Opening of rotary table 445mm

Rotary table speeds 2F+1R Rated input power of rotary table 200Kw
