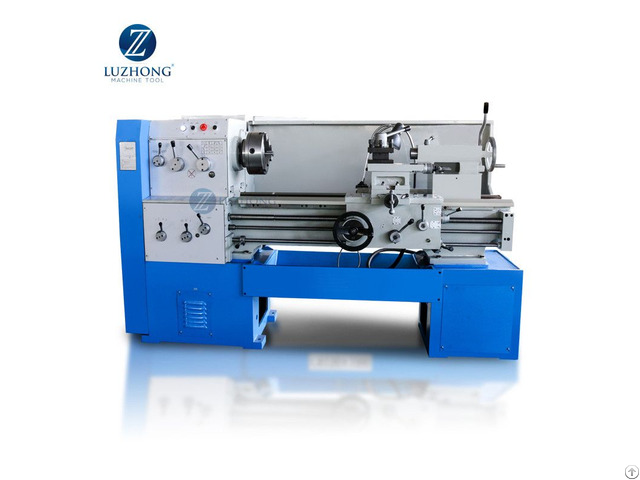

Metal C6140 Turning Horizontal Lathe Machine - China
price: 5550.00 Dollar US$
Features:
Rail width is 360mm
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest, Follow rest DRO Chuck cover, Tool post cover, Lead screw cover
Foot brake
Fast moving
Live center 4 jaw chuck
Drill chuck and holder Face plate
Quick change tool post
Taper turning attachment
SPECIFICATIONS Units C6140
Swing over bed mm 400
Swing over cross slide mm 230
Swing over gap mm -
Distance between centers mm 750/1000/1500/2000/3000
Spindle bore mm 52(Optional: 80)
Spindle bore taper - MT6(Optional: Metric 1: 20)
Spindle speed steps - 9
Spindle speed range rpm 40-1400
Cross slide travel mm 200
Top tool post travel mm 95
Tool size mm 20 x 20
Longitudinal feeds range mm/r 0.0832-4.6569
Cross feeds range mm/r 0.048-2.688
Kinds of metric threads kinds 19
Range of metric threads mm 0.25-14
Kinds of inch threads kinds 28
Range of inch threads T.P.I.
2-40
Kinds of threads module kinds 17
Range of threads module MP 0.25-3.5
Tailstock quill diameter mm 65
Tailstock quill taper - MT4
Tailstock quill travel mm 130
Main motor power kw 4
Coolant pump motor kw 0.09
Weight for 750 kg 1220
Weight for 1000 kg 1320
Weight for 1500 kg 1520
Weight for 2000 kg 1720
Weight for 3000 kg 1920
Dimension for 750 mm 2200x1140x1750
Dimension for 1000 mm 2400x1140x1750
Dimension for 1500 mm 2900x1140x1750
Dimension for 2000 mm 3400x1140x1750
Dimension for 3000 mm 4400x1140x1750
Company Contact:
- Posted By: Shandong Luzhong Machine Tool CO., LTD
- Phone: 86-0632-5083086
- Address: East of Luban Avenue,Tengzhou City,Zaozhuang City,Shandong Province,China, Tengzhou Shandong Province China, In the business, China
- Email:
Published date: April 27, 2021
- Business Description: -Machine center
-Lathe machine
-CNC lathe machine
-Milling machine
-Drilling machine
-Band sawing machine
-Boring machine
-Hydrulic press machine
-Metal forging machine(Air hammer,Slotting machine,Shapping and Gear hobbing machine)
-Sheet metal machine(Bending machine,Shearing machine,Rolling machine,Combined punching and shearing machine,Combination of Shear Brake Roll Machine)
Whatsapp/wechat: +86 15163203317
Email: crom@lu zhongmc.
com
