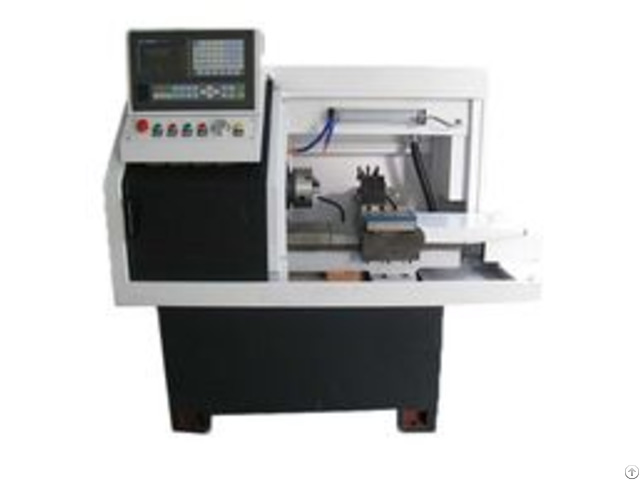

Small China Cnc Lathe Machine Ck0640a - China
price: contact company for price
Small China Cnc Lathe Machine CK0640A Specifications:
Item
CK0640A
Swing over bed(mm)
Φ300
Max rotative diameter on carriage(mm)
Φ100
Max processing length(mm)
Collect200/Chuck120
Spindle nose
A2-5
Through-hole diameter of spindle(mm)
Φ48
Through-hole diameter of drawn pipe(mm)
Φ40
X/Z-axis repeatability(mm)
0.012/0.013
X axis travel(mm)
260
Y axis travel(mm)
240
X-axis rapid traverse rate(m/min)
5M
Z-axis rapid traverse rate(m/min)
8M
Spindle speed range(m/min)
150-2200
Type of tool carrier
Gang-type tool carrier
Main motor power(KW)
3kw
L*W*H(mm)
1600×1000×1550
weight(Kg)
1000kg Small China Cnc Lathe Machine CK0640A Design:
•Machines were controlled by Mach3 High speed, efficiency and stable performance.
•longitudin al and cross feeds are effected by ball leadscres driven by mixed type step motor.
•4-way electrical tool post with auto tool position.
GUARANTEE AND AFTER-SALE SERVICES:
1 - one year guarantee for whole machine except of CNC system, which guarantee is three years
2.24-hours technical support by E-mail or telephone
3 - User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4 - Provide extra accessories for the machine
5 - Also provide service of make program according to your drawings
6 - Customized or special design is OK.
If you are interested in Small China Cnc Lathe Machine CK0640A, welcome to leave a message or send the inquiry to understand the details of machine.
Company Contact:
- Posted By: Taian Haishu Machinery CO.,LTD
- Phone: +8613562857553
- Address: Shankou town, Taian , Shandong , China
- Email:
- Website: https://www.wheelcncmachine.com
Published date: June 29, 2018
- Business Description: Taian Haishu Machinery CO., LTD was found ed in 2001, mainly produce cnc lathe, cn c machine centers, all through CE.
