Mini Air Collet Chuck For Automatic Equipment - China
price: 580.00 Dollar US$

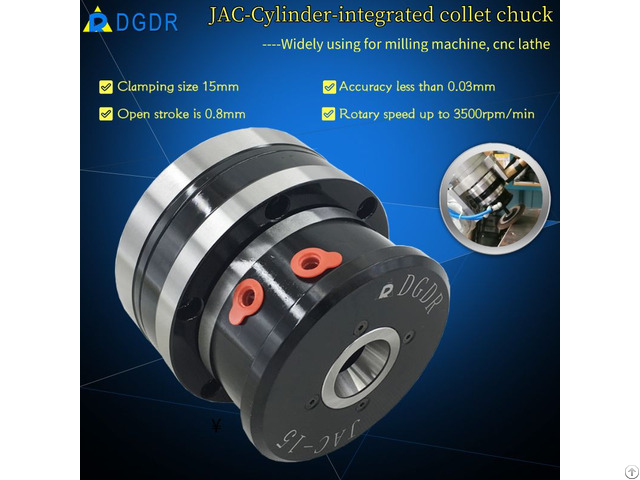

JAC SERIES cylinder-integrated Air Collet Chuck provides you with irreplaceable convenience to set up your power collet chuck system.
JAC Collet Chuck integrates itself a high speed rotary cylinder, saving you from installing an extra cylinder, a drawtube or an air feeder.
With its real front-mounting design, the installation for a power collet chuck system is revolutionarily easier than ever.
1 - JAC series is a small rotary air chuck, with small size, saving space.
2 - JAC Precision collet chuck with inner rotary air cylinder.
3 - No need to install an extra cylinder, draw tube or an air feeder, saving facility costing.
4 - Max outer diameter is 102MM, the clamping of though-hole is 15MM.
5 - The clamping accuracy of JAC is within 0.01MM, and the repeatability accuracy is 0.03MM.
6 - Max R.P.M is 3500RPM
7 - Using YB-15 Chuck models, forcing clamping to loosen, feeding material smoothly.
8 - No displacement when clamp the work-piece.
9 - Max operation pressure is 3-8KG
10 - With semi-tight design, highly dustproof and waterproof.
Company Contact:
- Posted By: DONGGUAN DERUI PRECISION MACHINERY CO., LTD
- Phone: +8618925547774
- Address: NO.136,shida road , liaobu town, dongguan city, guangdong province, china, dongguan , guangdong , China
- Email:
- Website: https://www.dgdrchuck.com/
Published date: June 2, 2020 - Modified date: June 3, 2020
- Business Description: Derui Precision Machinery Co.
Ltd is specialized in manufacturing various of High Precision Chuck.
Including two parts: Hydraulic chuck and Pneumatic Chuck.
Our main products include Cylinder-Integrated Collect Chuck/Rotary Power Chuck/Expanding Mandrel/Spindle Collect Chuck/Air Diaphragm Chuck/Precision Collect Chuck/3-Jaw Diaphragm Power Chuck/Stationary Chuck etc.
