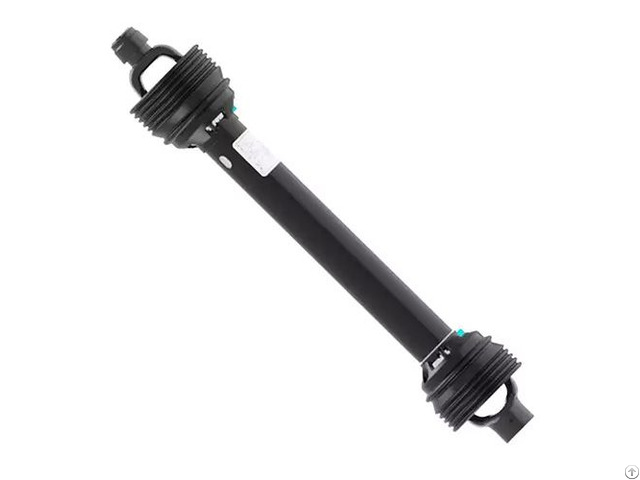

Replacement Of Weasler 55 Series Pto Shaft - China

PTO Shaft Replacing for Weasler 55 Series Replacement for Weasler 55 Series PTO Shaft

1/8''-6 7

Requires Cross Kit.

Implementation Yoke is required.

The engine produces 106 horsepower at 540 RPM.

48' Compressed Length (Dim.

A)

55 Series Replacement PTO Shaft Weasler specifications:

Spec.

Imperial Metric

Bore 1 Minus End Yoke

Bore 2 Minus End Yoke

Compressed (Closed) Length 37.38 inches 949 millimeters

Compressed Overall Length 48.00 inches 1219 mm

Connection 1 YOKE Arms

Connection 2 ARMS WITH YOKE

Extended Length 61.13 inches 1553 mm

Extended Overall Length 72.00 inches 1829 mm

HP@1000RPM 164 HP 122 Kilowatts

HP@540RPM HP 106 79 Kilowatts

Length 48.00 inches 1219 mm

Outside Diameter 7.28 inches 185 millimeters

Shipping Dimensions 37.38" L 37.38" L 7.28" H 7.28" W x 7.28" W 95cm L x 18cm H 18cm W

Shipping Volume 1981.08 in3 32464 cm3

Shipping Weight 41.90 pounds 19 kilograms

Weight 41.90 pounds 19 kilograms

Replacing of 55 Series Weasler PTO Shaft Parts:

Tractor Yoke The Cross & Bearing Kit Shaft Shaft Weld Yoke

Slip Sleeve Tube Tube The Weld Yoke implement Yoke

Yoke & Shaft Assembly Yoke & Tube Assembly Drivelines Guard & Guard Bearing

What is PTO shaft?

PTO shaft PTO shaft plays an essential function as it transmits power between the tractor and the implement attached.

The components of the PTO shaft comprise of the inner and outer PTO yokes as well as universal joints, safety chains, and guards.

There are many different kinds of PTO shafts that you can choose from and it is crucial to select the best one for your particular equipment and use.

HZPT provides three distinct kinds of shafts for PTO: North American, German and Italian.

Each type comes with multiple choices of series, which include different bearing diameters, overall cover-tocover lengths, as well as snap rings.

The most precise method to determine which series is the right one is to determine the outer diameter of the cap and the U-joint, from one side that the cap is to one side.

The location that the snap rings are located is a further crucial factor.

PTO Shaft Components:

1 - PTO Shaft Outer Yoke 3 - PTO Shaft Inner Yoke 5 - Plastic PTO Shaft Guard

2 - PTO Shaft Universal Joints 4 - PTO Shaft Guard Chains 6 - PTO Shaft Tube

How do I measure PTO Shaft Parts?

Properly measuring shafts is essential to choose the right PTO size.

Each part must be measured in a certain manner to be able to fit into the standard dimension.

Follow these steps to make sure you have the right measurements and to get the correct pieces for your tractor.

1 - Measuring the Shaft

To determine the length of your shaft, it is important to first ensure that it has been placed in the position, when your shaft is the smallest.

Make use of a tape measurement to measure the length of to the outside edge of every yoke.

This measurement is known as the length of the yoke that is closed.

Utilize this measurement to determine the proper series size for your tractor's horsepower.

Also, be aware the clutches, shear pins or splined ends for your implements.

2 - Find the Universal Joint When taking measurements of a universal joint, take a measurement of the length that runs from one end's outer edge to the next.

It is also necessary to note the width of one side that is part of the universal joint.

These numbers will help you determine the correct gimbal size.

3 - Combine Them All

You'll require both of the measurements described above to locate the PTO shaft which is compatible with your tractor.

Use the PTO size chart for yoke to find the proper size or you can use our PTO series discover tool.
