Automatic Micro Controller Ic Programming System Machine For Production Line - China

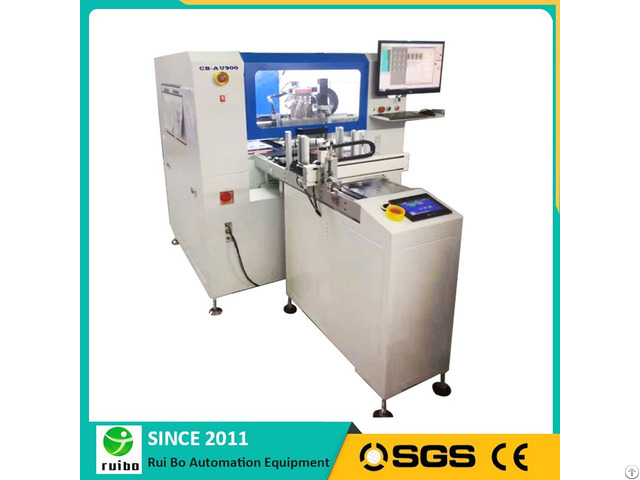

Automatic Micro-Controller IC Programming System Machine for Production Line

Application of IC Programming Machine

Program download for all kind of types packaged of Chip.

Support package changing.

Specification for Fully IC Programming System

Mode CB-AU900

Control System USB/PC

Programming Socket Up to 64pcs

IC programming ability 2s+programming time About 1800/h (According to program)

Non-qualified product processing Automatic alarm and collect

Pass marker dot with ink

Safety Emergency stop switch

Air supply 0.4-0.5Mpa 50L/min

Power supply AC 220V 50HZ

Dimensions(mm) (W*D*H)1380*1100*1550

weight About 1.2T

Programmer Option Sylt, MP33, Dataio, etc.

Description of IC programming system

1 - Automatic programming system.

Automatic strip packaging film→Pick and place IC→Programming →Chip retrieval→Testing→pac kaging→coiling.

2 - Cb-400c automatic programming equipment is suitable for tape IC multiple take - put type.

Vacuum sucker and flit-over automatically.

It can connect 4 sets of programmer at the same time, support offline programming function with flash download mode.

This machine has IC programming and testing functions.

Moving position accurate and fast by stepper control .

IC feeding stable and reliable four axis high-speed linkage.

Features of Automatic IC programming equipment

1 - Support all types IC in package of Tube, Tray, Tape .

2 - Can change IC package after programming which support tube to tray, tube to tape, tray to tape, etc.

3 - High accurate position by equipped with two CCD system.

4 - Tray package support automatic tray feeding by trays a time.

5 - High efficiency and cut the waiting time by at least 4 sets programer working at the time.

6 - High speed servo driving system includes slide rails, screw rod and other high-performance mechanical devices.

7 - Flexible.

Up to 64 devices programming simultaneously according to the program.

8 - Professional.

Support wide range of devices including MCU/MPU, EEPROM, eMMC, eMCP, SPI memory, NOR/NAND flash, FPGA, etc…

9 - Supermatic.

NG products automatic processing with automatic feeding

Advantage of Automatic IC programmer

1 - The socket is easy to transform by plugged and unplugged, easy transformation.

2 - Programming socket has 1-8 station, can open or close any socket according to the capacity.

3 - High quality.

Equipped with SMT standard nozzle to effectively protect the chip from damage.

4 - Strong support.

Can be expanded to 16programmers according to capacity.

5 - High speed.

The single-cycle action is about 3s of pick-and-place time.

Benefits of Automated ic programming system

1 - Cost saving.

Can be arbitrarily matched with any brand of programmer(with OK, START signal), saving customers the loss of the original programmer.

2 - Quality assurance.

Equipped with automatic marking function to facilitate quality traceability.

Expandable inkjet code and laser marking.

3 - Safety system.

Self-contained leakage protection device.

4 - ConveniencesIt can store 60 sets of files.

After file creation, the corresponding files can be retrieved for production.

5 - Easy to operate and edit.
