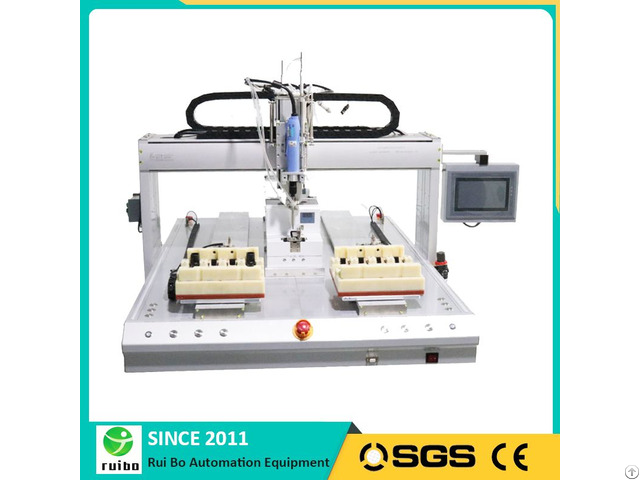

Desktop Robotic Screwdriver Drill Machine With Place Products Front And Pick Out Rear Function - China

China Desktop Robotic Screwdriver Drill Machine Set with Place Products Front and Pick out Rear Function The automatic screw tightening machine also is called screwdriver machine, screw tightening machine, suitable for automated assembly in the electronics industry such as cameras, mobile phones, hard disks, keyboards, printers, computers, DVDs, home appliances, toys, appliances, communication equipment, electronic processing and assembly, etc.

Automobile industry assembly, such as automotive motors, parts assembly, etc.

Advantages of soldering machine:

1 - Real-time monitoring on screw tightening process;

2 - Rich experience on screw tightening workmanship;

3 - Increase output to complete yield planning smoothly;

4 - Improve your quality and brand image;

5 - Energy saving and labor saving; Product Description of Screwdriver Machine This product uses XYZ platform (single fasten head, double slide fastening mechanism).

It is made of imported parts and combined with domestic high-quality accessories.

It has low-cost, high-efficiency and stable superior performance, simple operation and strong practicability.

Specification for Automatic Screw Tightening Machine

Machine Gross Weight About 85KG

Dimension(L*W8*H) 550*650*700/170*330*100(m m)

Power AC 220V 50HZ

Machine Frame Material Aluminum Profile

Effective Travel Area(X/Y/Z) 110*330*100/170*330*100(m m)Can be customized

Repeat Accuracy ±0.02

Drive motor Precision Stepper Motor

Alarm System Floating, Screw Wrong Target, Leakage Lock, Bad Screw

Transmissions Precision Timing Belt, Lead Screw, Slide Rail

Control System PLC + Touch Screen

Screw Delivery Method Suction Type

Screw Feeder Quantity 2 Groups

Working Efficiency 1.2/PCS

Program Storage 100groups, each of the maximum 400 points, Support USB copy

Main Features of Screwdriver Machine

1)Can tightening two different type of screws at the same time.

Put one products in fronts of you →Automatic tightening screw1 → Move to the rear → Tightening screw2→ Pick out from the rear by another worker.

2) Flexible.

Do not need to be equipped with an external computer, can do single operation, easy installation.

3) Versatility, replace the screw delivery module, suction nozzle, screw bit, it can be adapted to M1.0~ M4.0 screw.

4) High efficiency .

fastening a screw needs less than 1.5 s, which is more than double the manual efficiency.

5) safety.

Auto-sensing start function.

6) Big Program Record Groups Quatity: 100(Groups).

One product only needs one programming, the next production, direct call.

7) Low cost, High return.

The efficiency of a machine fastening screw is 1 times that of manual.

The machine adopts double-head double-station, which can replace 2 people.

The purchase of one machine can save 2-3 people.

8) Simple operation.

Desktop or on floor automatic fastening machine.

Fully automated operation except pick and place products.
