General Rubber Conveyor Belt - China

General Rubber Conveyor Belt cotton polyester canvas conveyor belt industrial conveyor belts manufacturers PRODUCT DESCRIPTION

General Rubber Conveyor Belt product features

1 - Ordinary conveyor belts are made of cotton canvas (CC) or VC (VC) after rolling, molding, vulcanization and other processes.

2 - Rubber conveyor belt is suitable for conveying non-corrosive bulk, granular and powder materials, such as coal, coke, sand, cement and other bulk materials or finished articles at room temperature.

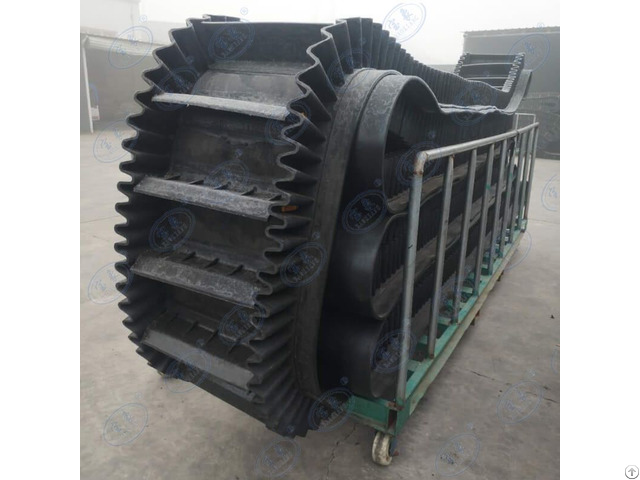

3 - The product can be made into different structures, such as envelope-side type, open-side type, middle ladder type and side ladder type, to meet the requirements of different use conditions.

Baoxiang Cotton polyester canvas conveyor belt

Cotton canvas is made of cotton fiber in both warp and zonal direction, with low elongation and good adhesion.

Under the condition of high temperature deformation is small, suitable for short distance, transport volume smaller situations, conveyor belt is made of cotton conveyor belt upgrade product quality, its tensile body USES the meridional blended YingWei and zonal, cotton woven performance is better than that of cotton conveyor belt, especially with thinner, lighter, impact resistant performance is greatly improved.

Suitable for conveying materials in short distance and medium load conditions.

According to the different properties of the covering rubber can be divided into ordinary type, heat resistant type, fire resistant type, burn resistant type, acid and alkali resistant type, oil resistant type, etc.

rubber conveyor belts Specification

(1) Core material: TC-70 polyester/cotton interwoven fabric, CC-56 cotton canvas

(2) Belt width: 100mm-1600mm

(3) Layer: 1-10 layers

(4) Covering glue: Working surface: 1.5-9mm Non-working surface: 0mm-4.5mm

Belt width(mm) Cloth layer number Thickness of covering glue(mm) Working surface Non-working surface

300 3~5 4.5 3.0 1.5 3.0 1.5

400 3~6 4.5 3.0 1.5 3.0 1.5

500 3~6 4.5 3.0 1.5 3.0 1.5

650 3~6 4.5 3.0 1.5 3.0 1.5

800 3~8 6.0 4.5 3.0 1.5 3.0 1.5

1000 3~8 6.0 4.5 3.0 1.5 3.0 1.5

1200 4~10 6.0 4.5 3.0 4.5 3.0 1.5

1400 4~10 6.0 4.5 3.0 4.5 3.0 1.5

1600 4~10 6.0 4.5 3.0 4.5 3.0 1.5

1800 5~10 6.0 4.5 4.5 3.0

2000 5~10 6.0 4.5 4.5 3.0

2200 5~10 6.0 4.5 4.5 3.0

(1) Specification for tensile strength of tape of full longitudinal thickness：N/mm

180 200 250 315 400 500 630

(2) Physical properties of cover： Overlay performance level code Tensile strength ≥ elongation at break %≥ Abrasion value mm3≤ 70℃ × 168h After aging, the change rate of tensile strength and elongation at break %　 MPa kgf/cm2 Laceration resistant type H 24.0 180 450 120 -25~+25

Anti-abrasive type D 18.0 140 400 100 -25~+25

Ordinary type L 15.0 100 350 200 -25~+25 (3) Interlaminar bonding strength (including natural fiber fabric core)

Index name Cloth layer between Between the covering layer and the cloth layer Thickness of covering layer≤1.5mm Thickness of covering layer＞1.5mm N/mm N/mm N/mm

Average value of longitudinal sample ≥ 2.7 2.1 2.70

The lowest peak value of all longitudinal samples≥ 2.7 1.6 2.2 Baoxiang provides rubber belting for sale, we are committed to the alkaline resistant conveyor belt, material handling conveyor belt series, rich experience, welcome to consult.
