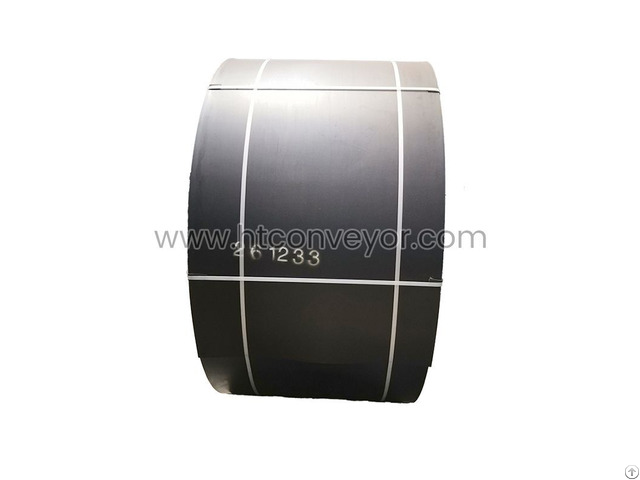

Multi Ply Fabric Rubber Conveyor Belt - China

HENGTUO Fabric core conveyor belts can be divided into: cotton canvas (CC) conveyor belts, nylon (NN) conveyor belts, and polyester (EP) conveyor belts according to different skeleton layer materials.

Layered fabric core conveyor belts have different types according to the properties of rubber, including ordinary type, heat-resistant type, high-temperature-resistan t type, burning-resistant type Construction of Fabric core conveyor belts The design of multi- ply fabric conveyor belt enables application in all areas of material handing.

t consists of rubber cover and core rubber.

Rubber cover is developed from blends of natural and synthetic rubber, which is designed to protect the carcass from abrasion, impact, water and other injurious influences.

It can be compounded to meet particular service conditions such as abrasion resistant, oil resistant, heat resistant, flame resistant, cold resistant, antic- -static and Chemical resistant etc.

Carcass consists of one or multiple plies of dipped synthetic reinforced fabric based on EP(warp- -Polyester +weft- Polyamide), NN(Nylon- -Nylon) or CC (Cotton-Cotton).

It maintains the belt tension and supports the structure strength, which undertakes almost all the load during the work.

Core rubber has good fabric adhesion properties, which makes the fabrics bond tight.

That can increase flex life and create a more elastic link, so that fabrics flex without separation when belt under working.

Rip stop conveyor belt with steel layer embedded between the cover and the carcass is designed to withstand the impact with sharp and extreme load materials.

The special characteristic ensures the belt' s resistance to tearing.

Company Contact:

• Posted By: Hangzhou Hengtuo Machinery Technology Co.,LTD.

• Phone: 8615757732226

• Address: Room 721, Building 1, Beichen Jinzuo, Renhe Street, Yuhang District, Hangzhou , Zhengjiang , China

• Email:

• Website: https://www.htconveyor.com

• Business Description: Founded in 1998, the HENGTUO Group has grown to be a leading partner to the global materials handling industry.

  HANGZHOU HENGTUO is headquartered in the beautiful City Hangzhou , Zhejiang Province.

  We has more than 60000 square meters of modern standardized factory, more than 20 experienced bulk conveying equipment and system R & D and design engineers.

  With over 20 years of experience in providing engineered material handling solutions, we are ready to work to meet your needs.

  All of our conveyor parts are fully traceable.

  We supply to over 60 countries worldwide meeting many different recognized standards.

  We are certified to ISO 9001: 2015 Quality Management System standards.

  Our goal is to provide solutions that will produce profits for your business.

  If we cannot perform this task, we have no value to offer.

  WHAT WE DO?

  We manufacture, convert and distribute belt conveyor and associated products.

  HANGZHOU HENGTUO is among the leading companies in the conveying systems market specializing in the design, manufacturing, sales and after-sales services of rubber conveyor belt, conveyor rollers/idlers,conveyor pulleys, and other related of conveyor components in China.

  Our products and services has been widely adopted by worldwide Coal mines, Cement, Sand, Steel works, Quarry plants, Construction, Glass, Chemicals , Agricultural ,Wood industry and so on.

  Belts are available in variety uses from width 300mm to 4000mm , belt thickness ranging 4mm to 50mm, and minimum length as 30 meters.

  The annual output of rubber conveyor belts are up to 1.8 millions meters.

  Rollers are available in steel, rubber impact and HDPE in diameters ranging from 76 mm diameter to 219 mm diameter in shaft series from 25mm to 50mm up to 3500mm long.

  Standard idler frames are from 450 mm to 2400 mm Belt Widths, as well as numerous unique frames to solve a variety of conveyor challenges.

  THE HENGTUO GROUP'S STRENGTHS INCLUDE:

  Orientation to technical support of customers in the design and sales phase;

  A wide range of constantly evolving products;

  Trusted relationships established with customers and suppliers;

  Professional one-stop service;

  QUALITY ASSURED

  Dependable Service.

  Performance Proven Quality.

  The Company is committed to the highest quality standards.

  Our goal is to provide solutions that will produce profits for your business.

  Customer service is at the forefront of everything we do.

  If working to a budget or a lead time is unworkable, we will try and develop a strategy to suit all.

  We are flexible and reliable, just like our customers.

  Please visit the pages for details on additional HENGTUO& Company products.
