St1800 Steel Cord Conveyor Belt Cost - China

Overview:

Condition: New

Type: ST1800

Material: Rubber, Rubber + steel cord

Material Feature: Fire Resistant ( according to customer's requirement)

Structure: Belt Conveyor

Load Capacity: Strong

Place of Origin: hebei, China (Mainland)

Brand Name: Lanjian

Voltage: 220/380V

Power(W): 0.4kW - 22kW

Dimension(L*W*H): Custo mer Request

Certification: ISO9001: 2008

Product Name: Transport Conveyor Belt

Feature: Abrasion resistant / Heat resistant ( according to customer's requirement)

Application: cement, crusher plant, mining, port

Certificate: ISO9001, ISO14001

key words: steel cord Conveyor Belt

Model Number: 300-2400mm

SupplyAbility: 1000 Square Meter/Day For rubber Conveyor Belt

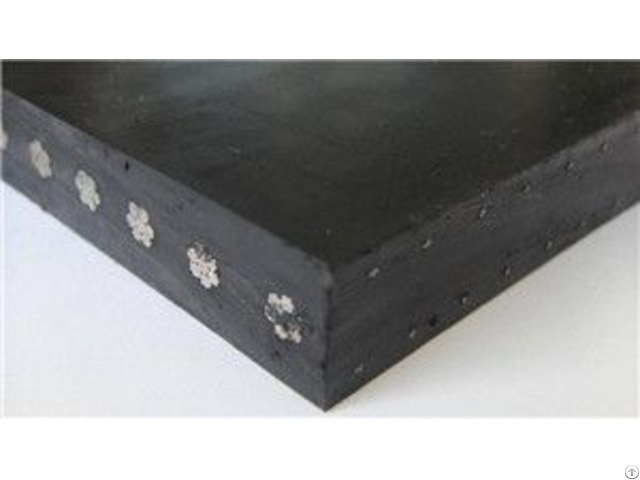

Steel cord industrial belts ensure maximum conveying performance, even under grueling stress conditions.

Their robust design guarantees high tensile strength at maximum conveying capacity as well as excellent impact resistance.

Wear-resistant, rot and corrosion-resistant, resistant to chemicals and thermally stable, our conveyor belts provide long years of service while requiring little maintenance.

Application fields: Cement, concrete plants, Quarry, gravel, sand, iron ore Coal, mining, road construction Machinery, Metallurgy, steel industry, Heating and power station, Garbage incineration plants, Recycling, compost industry, Chemical industry, port, etc.

Standards: GB/T9770, DIN22131, EN ISO 15236, SANS1366 and AS1333.

Features:

1 - High tensile strength: Steel cord conveyor belt is suitable for large span, long distance transportation of materials.

2 - Small elongation in use: It need only a very short take-up stroke distance.

3 - Small diameter of drive pulley: Steel cord conveyor belt body has a layer of longitudinally arranged steel cords as its skeleton, and thus is resistant to flex fatigue.

Therefore, drive pulley of smaller diameter can be used to make the equipment smaller.

4 - High adhesion between rubber and steel cord: The steel cords are coated with zinc on their surface, and also the rubber used has the property of good adhesion with steel cords.

Therefore, athe rubber is tightly adhered to the steel cords and is resistant to shock and difficult to drop, so the rubber belts are long in life.

5 - Even tension of steel cords: Out of our advanced techniques in manufacturing, the steel cords are very evenly arranged and have the same tension, so the belts are well balanced in running and difficult to run away.

6 - Good troughability: As the belt body has no transverse skeleton, it is easy to from a deep trough, so the belts can load more materials and prevent the materials from escaping.

7 - Good troughability: Steel cord conveyor belt boby has no transverse skeleton, it is easy to from a deep trough, so the belts can load more materials and prevent the materials from escaping.

8 - Inspection of the belt with X-rays: Users can X-rays to inspect damages of the skeleton steel cords on the conveyor machines to prevent accidents from happening.

Packaging Details

--- Maximum 500m per roll for rubber NN conveyor belts

--- Cassette package is available for abrasion resistant conveyor belts

--- One 20" container can load 6--8 rolls DIN-Y conveyor belts

--- One 40" container can load 8--10 rolls stone crusher conveyor belts

--- Inner is packed on round rubber core with 30cm diameter and 12cmx12cm square hole.

--- Outer is packed with one ply water-proof PP fabric

--- Customized package is available for rubber conveyor beltings

Port

TIANJIN, XINGANG

Lanjian was established in 1986 with the company name"Lanjian conveyor belts Co., Ltd “.

Now with 20 million Yuan annual turnover, 200 employees, Lanjian has become one of top manufacturer of conveyor accessories in the north of China.

Main product as below: 1 - Multi-ply (EP/NN) conveyor belt

2 - Corrugated / Sidewall conveyor Belt

3 - Heat Resistant Conveyor belt

4 - Flame Retardant Conveyor Belt

5 - Chevron / Pattern Conveyor Belt

6 - Twins Conveyor Belt

7 - Chemical Resistant Conveyor Belt

8 - Endless Conveyor Belt 9 - Fire Resistant conveyor belt 10 - PVC/ PVG conveyor belt

11 - Oil Resistant conveyor belt

12 - Roller

Our belt conveyor and Idler are widely used in Coal mining industry, Electric industry, steel industry, warehouse, port and other bulk material handling.

Lead Time :

within 15-20 working days for rubber conveyor belt order
