Fy180 Crawler Pneumatic Water Well Drilling Rig - China

price: 100.00 Dollar US$

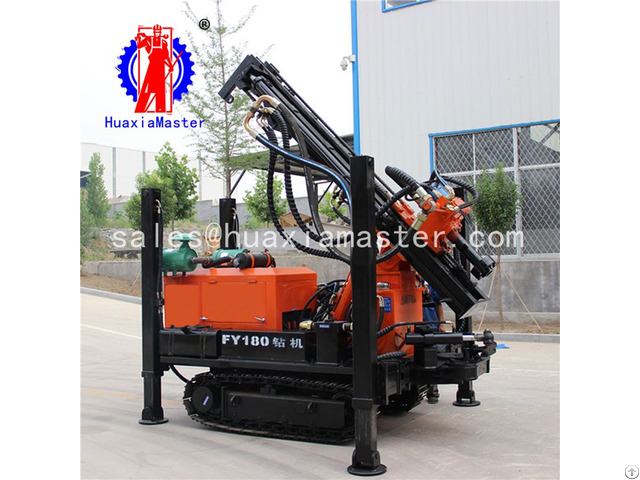

Fy180 Crawler Pneumatic Water Well Drilling Rig

Products Photos Catalog Fy180 Crawler Photos Catalog

1 - The applications of FY180 crawler pneumatic water well drilling rig

·civil engineering drilling

·geothermal drilling

·drilling with large diameter and deep drilling footage

·It's fast, flexible and efficient

2 - The specifications of FY180 crawler pneumatic water well drilling rig

model FY180

Gross weight T 3.8

Dimension mm 3800*1550*2350

Aperture mm 130-254

Drilling depth m 180

Feed stroke mm 3000

Travel speed km/h 2.5

Grade ability Max.

30°

Rising height from ground mm 250

Wind pressure Mpa 1.7-2.5

Air consumption m³/min 15-27

Engine power kw 42-65

Rotary speed rpm 48-70

Rotation torque N.

m 4200-5600
