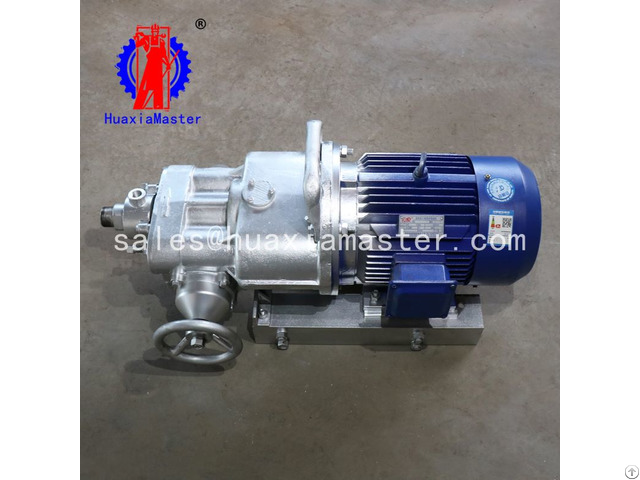

Khyd110 Electric Rock Drilling Rig - China

price: 100.00 Dollar US$

1.Brief introductions of KHYD110 electric rock drilling rig
·The electric rock drilling rig can be fitted with drill stand, and can be drilled horizontally or upward in any direction.
·In order to prolong the service life of the drill bit and improve the working conditions of the operator, wet drilled water can be used to discharge the powder and screw blade drills can also be used for dry draining.
·In the operation of electric motor rock drilling rig, we only need to operate the handwheel, and the electric motor rock drilling rig can advance itself and return quickly.
2.Specifications of KHYD110 electric rock drilling rig
Model Unit KHYD110
Rated output power of motor kw 5.5
Rated voltage of motor v 380/660
Rated frequency of motor hz 50
Rated current of motor a 11.6
Motor speed r/min 1440
Motor phase number three phase communication
Rated working mode continuity
Drilling speed mm/min 280
Speed of return m/min Borehole diameter mm 42-80(rock)
Hardness range protodikonov`s scale of hardness f<10
Maximum drilling depth m 20(rock)
Weight of drilling rig (excluding runways, drill pipes, drills) kg 110
Dimension (length * width * height) mm 950*460*430


Company Contact:


  • Phone: +8619806265526

  • Address: Wu taizha road, guanhe street, jining hi-tech zone, shandong province, Jining, Shandong, China

  • Email: Email


Published date: June 27, 2019 -

  • Business Description: Mechanical equipment and accessories, flood control equipment, track equipment, electric tools, hydraulic equipment, pneumatic tools, explosion-proof electrical appliances, instruments, pumps
