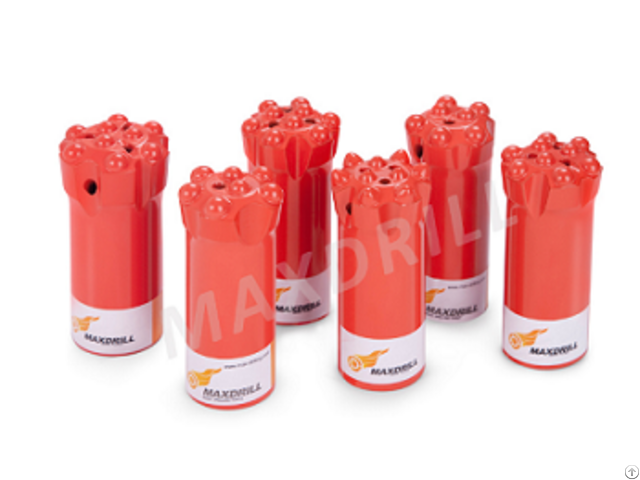

R32 64mm Drilling Button Bit - China

R32 64mm Button Drill Bit Product Description:

Dimensions D Flushing hole(mm) Buttons(mm) Angle Class Part no.

mm in Front No Size Gauge No Size Front No Size Gauge No Size

45 1 3/4 1*5.5 2*5.5 2*9 5*11 30° H 3045R3207

48 1 7/8 2*6 1*5 2*9 5*11 30° H 3048R3207

51 2 2*6 1*5.5 2*10 5*11 30° H 3051R3207

43 1 11/16 2*5 2*5 2*8 6*9 30° S 3043R3208

45 1 3/4 2*5 2*5 2*9 6*10 30° S 3045R3208

48 1 7/8 2*5.5 2*5 2*9 6*10 30° S 3045R3208

43 1 11/16 3*4 2*5 3*8 6*10 30° M 3043R3209

45 1 3/4 3*5 1*5 3*8 6*10 30° M 3045R3209

48 1 7/8 3*5 1*5 3*9 6*10 30° M 3048R3209

54 2 1/8 3*6 1*5.5 3*10 6*11 35° M 3054R3209

45 1 3/4 3*5 1*5 3*8 6*10 30° M 3045R32F09

48 1 7/8 3*5 1*5 3*9 6*10 30° M 3048R32F09

51 2 3*5.5 1*5.5 3*9 6*10 35° M 3051R32F09

54 2 1/8 3*6 1*5.5 3*10 6*11 35° M 3054R32F09

57 2 1/4 3*6 1*6 3*10 6*11 35° M 3057R32F09

64 2 1/2 3*7 1*6 4*10 6*11 35° M 3064R3210D Bit Diameter: 43mm-76mm Length of drill rod: 1800mm-5530mm Button bit design: Flat face, drop center, normal and retrac body.

Tungsten carbide (Buttons): Spherical, ballistic and conical.

Applications: Drifting, tunneling, bench Product Process: FAQ:

The information you may like to know before order: 1 - Methods of Payment: T/T (Telegraphic Transfer) or Western Union or L/C at sight 2 - Handling time for an order Based on order quantity, normally it takes 25 days for production.

Only 2 or 3 days if we have stock on your request size.

3 - Shipping way Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air Bulk order: we suggest by air or by sea.

4 - Quality Control We have our own experienced QC.

There will be strict inspection and testing for every order before shipping out.

5 - After Services: a.

Our sales team will response for your question within 24 hours (Holidays Excluded) b.

Technical Support will be available in any time c.

Free replacement will provide once the failure confirmed caused by our product quality Contact Information
