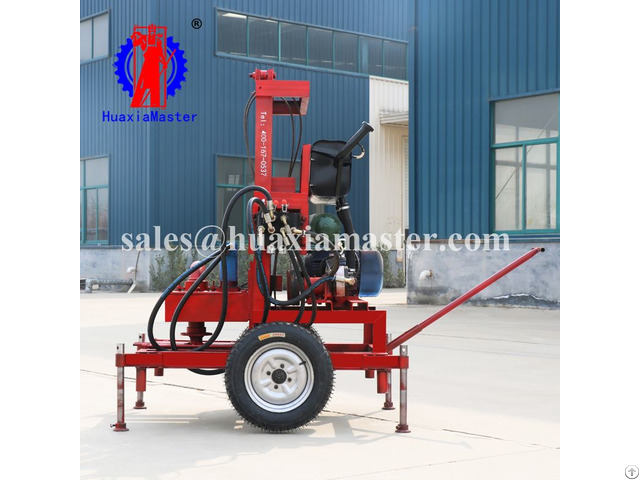

Sjdy 3 Three Phase Electric Full Hydraulic Water Well Drilling Rig - China
price: 100.00 Dollar US$
1 - Introduction of SJDY-3 three-phase electric full hydraulic water well drilling rig
SJDY-3 three-phase electric full hydraulic water well drilling rig is suitable for soil layer, sand layer and a small amount of rock layers.
It is mainly used for drilling civil water wells, irrigation wells, ground source heat pump air conditioning wells, precipitation wells, small foundation piles, and sound measurement tube and so on.
SJDY-3 three-phase electric hydraulic water well drilling rig is light and compact with high hole-forming speed and low noise.
The machine automatically unloads the drill pipe and is easy to move.
2 - Parameters of SJDY-3 three-phase electric full hydraulic water well drilling rig
Drilling depth m 0~120
Maximum opening hole diameter mm 500
Final hole diameter mm 150~500
Drill pipe specifications mm Φ60*1500
Rated voltage V 380
Rated power kw 7.5
Spindle torque N.
m 500
Rated lifting force kn 10
Lift stroke mm 900
Rig weight kg 320
Number of operators 2
Company Contact:
- Phone: +8619806265526
- Address: Wu taizha road, guanhe street, jining hi-tech zone, shandong province, Jining , Shandong , China
- Email:
- Website: http://www.huaxiamaster.com
Published date: June 27, 2019
- Business Description: Mechanical equipment and accessories, flood control equipment, track equipment, electric tools, hydraulic equipment, pneumatic tools, explosion-proof electrical appliances, instruments, pumps
