    • Yqz 50b Hydraulic Core Drilling Rig - China

    price: 100.00 Dollar US$

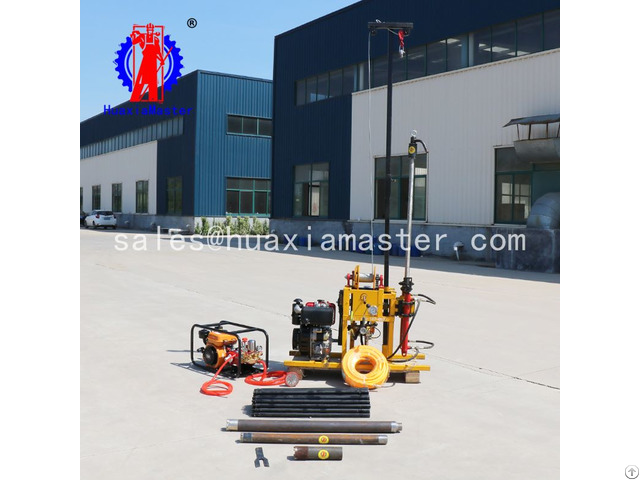

    Yqz 50b Hydraulic Core Drilling Rig

    Products Photos Catalog Yqz 50b Hydraulic Core Photos Catalog

    1 - Brief introduction of YQZ-50B hydraulic core drilling rig

    The YQZ-50B hydraulic core drilling rig with diesel engine is suitable for geological drilling in complex terrain such as mountains, hills, river courses, engineering geological investigation of buildings, drilling of blasting holes and so on.

    To meet the needs of different users, the rig can be equipped with one of three kinds of power : diesel engine, gasoline engine and electric motor.

    And the default is diesel power.

    2 - Features of YQZ-50B hydraulic core drilling rig

    The hydraulic core drilling rig is compact in structure, small in size and light in weight.

    YQZ-50B hydraulic core drilling rig can also be quickly disassemble, is more convenient to transport especially suitable for mountainous and hilly complex terrain work.

    Compared with similar products, the hydraulic core drilling rig is equipped with dual cylinder hydraulic feed system with high drilling speed and high efficiency.

    The operation panel of this type of hydraulic core drilling rig is equipped with the pressure gauge of the bottom of the hole to indicate the pressure in the hole, and the operator can make the adjustment according to the different terrain conditions.

    The hydraulic core drilling rig is equipped with a high-performance 4 gear shift system.

    It is convenient for operators to freely adjust the positive rotation speed according to the geological conditions.

    In addition, it also has an ultra slow reverse gear, which is convenient for operators to remove drill pipe drill tools.

    This type of hydraulic core drilling rig is equipped with automatic hoisting and lifting system, combined with tower, which greatly saves labor intensity and improves work efficiency.

    The hydraulic core drilling rig is equipped with a ball clip clamping mechanism and a six party active Drilling Pipe, which can realize the non stopping of the pole, and the efficiency is high, and the safety is reliable.

    3 - Technical parameters of YQZ-50B hydraulic core drilling rig

    Rig host

    Dynamic part diesel engine

    Drill weight 145kg

    Drill rig size 1250*650*1050mm

    Drill pipe diameter 32mm

    Borehole diameter 46mm 60mm 75mm

    Borehole depth 50-60m 40-50m 30-40m


    Company Contact:


    • Phone: +8619806265526

    • Address: Wu taizha road, guanhe street, jining hi-tech zone, shandong province, Jining , Shandong , China

    • Email: Email


    Published date: June 26, 2019

    • Business Description: Mechanical equipment and accessories, flood control equipment, track equipment, electric tools, hydraulic equipment, pneumatic tools, explosion-proof electrical appliances, instruments, pumps
