Zlj650 Grouting Reinforcement Drilling Rig - China
price: 100.00 Dollar US$

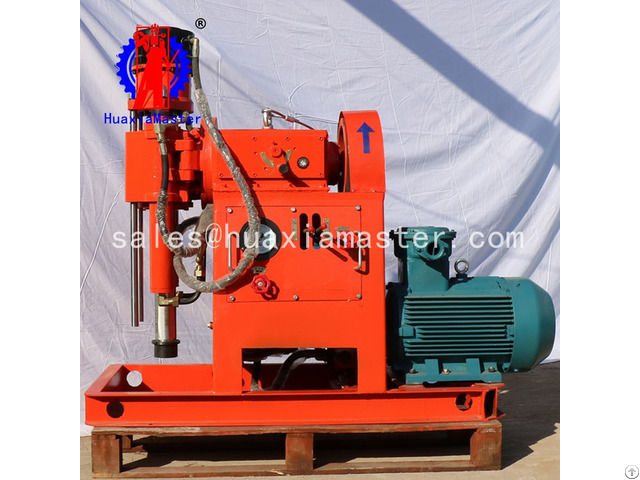

1 - Brief introductions of ZLJ650 grouting reinforcement drilling rig
ZLJ-650 grouting reinforcement drilling rig is mainly used for drilling holes with different angles in underground mine, tunnel, subway and slope support.
This drilling rig adopts mechanical drive, hydraulic feed with small size, light weight, The drilling rig is reliable and convenient to operate.
2 - Specifications of ZLJ650 grouting reinforcement drilling rig
Drilling hole diameter 50-113mm
Hole depth 200m
Drilling pipe diameter 42mm
Open hole diameter 50-113mm
End hole diameter 56-113mm
Vertical rated speed 340 192 112 r/min
Vertical shaft torque rating 130/ 230/ 400 n.
m
Main shaft angle 0-360
Spindle stroke 400mm
System pressure rated 8mpa
Feeding force 9kn
Elevating power 12kn
Winch lifting capacity 7.35kn
Drum Capacity 26.8m
Wire rope diameter 8.85mm
Oil pump type YBC-12/80
Motor power 7.5kw
Dimension 1200*700*1280mm
Total weight 560kg
