30tpd Vegetable Oil Solvent Extraction Plant - China

1 - Description of vegetable oil solvent extraction plant :

Solvent extraction is a process to extract the oil from oil bearing materials by means of a solvent.

The purpose of vegetable oil solvent extraction plant is to remove most of the oil contained in the seed.

Extraction is conducted on prepared seeds or, as generally occurs in the case of high oil content seeds, the cake obtained from pre-pressing.

2 - Main parts function (1) Solvent pumps: continuously spray solvent to the rotary-typr extractor.

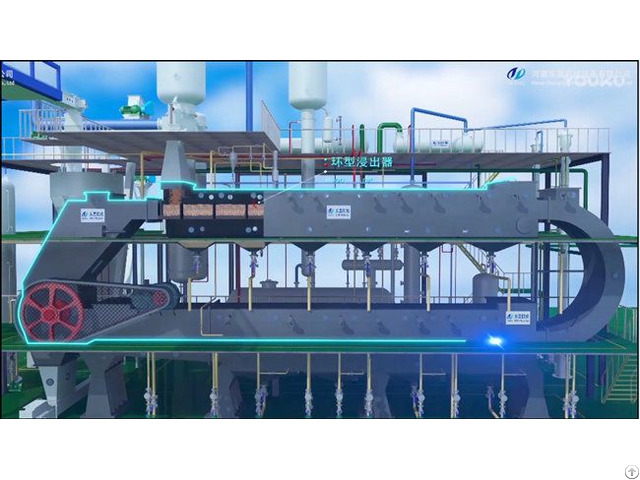

(2) Roary extractor: spray and soak the prepressed cake with solvent so that oil fats can be dissolved in solvent (form miscella).

After processing, you can get wet meal and miscella (mixed oil).

(3) DTDC: used to separate the solvent from the wet meal.

(4) Miscella tank 1st: pump the miscella ( oil with solvent) into the miscella 1st, then add 10% saline water to it.

The phospholipid and impurities in the miscella will react with the saline water, at last the reactant precipitate, reaching the goal of purifying.

(5) Miscella tank 2nd: the purified miscella will be pumped into it.

(6) Miscella stripping: it will remove the remaining solvent in miscella.

And the solvent will be discharged to condenser for recycling.

(7) Condensers: used to cooling the solvent gas separated from the wet meal and miscella for recycling.

Company Contact:

• Posted By: Henan Doing Mechanical Equipment Co., Ltd

• Phone: +86 13526627860

• Address: 14th Floor, Building 9, Jincheng Times Square, Zhengzhou, Henan, China, zhengzhou , Asia , China

• Email:

• Website: https://www.palmoilextractionmachine.com

• Business Description: Henan Doing Mechanical Equipment Co.

  ,ltd is a leading manufacturer specialized in edible oil extraction machine,peanut oil extraction machine,soybean oil extraction machine,sunflower oil extraction machine,rapeseed oil extraction machine,rice bran oil extraction machine,sesame oil extraction machine,palm oil extraction machine and other oil seeds extraction machine.

  Our company service includes：technology design, installation and debugging, technical training, relocation of oil plant, technology reform and turnkey project.

  Our edible oil extraction machine have gained many achievements and awards.

  And we have installed edible oil extraction machine in more than 20 countries over the world.

  Such as Malaysia, Indonesia, Nigeria, Liberia, Thailand, Congo, Zambia and Uzbekistan and so on.

  Our products include:

  Pretreatment &pre-press

  1, 5-30T/D small scale cooking oil pretreatment & pre-press production line

  2, 30-500 T/D medium-sized cooking oil pretreatment & pre-press production line

  3, 500-2000T/D large-scale cooking oil pretreatment & pre-press production line

  Palm fruit /palm kernel oil processing machine;

  1-2-3-5TPH small palm oil processing machine

  15-30-45-60-80-1 20TPH palm oil processing machine;

  5-600TPD palm kernel oil processing machine;

  Solvent extraction plant:

  30-500T/D cooking oil solvent extraction production line；

  500-2000T/D cooking oil solvent extraction production line；

  Cooking oil refining:

  1-2-3-5-10TPD batch cooking oil refinery machine;

  10-15-20-25-30- 50TPD semi continuous cooking oil refinery machine;

  50-80-100-150-3 00-600TPD full continuous cooking oil refinery machine;
