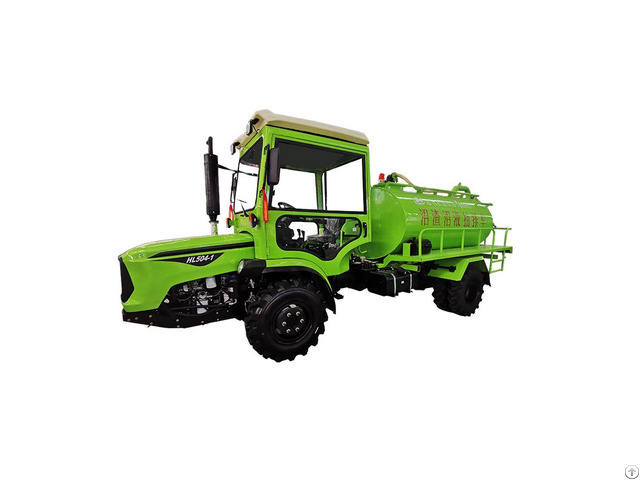

Hilly And Mountainous Wheeled Tractor Equipped With Extraction Function Module - China

It is suitable for absorbing and discharging sewage, feces, biogas residue liquid, etc.

in rural areas.

At the same time, it is responsible for transportation and spraying operations, and is suitable for the majority of biogas tank users, sanitation sewage treatment and other environmental operations.

hilly and mountainous wheeled tractor Features: In the modular concept, this car is the result of a combination of long-wheelbase platform modules and power modules.

When necessary, the long-wheelbase platform module can be switched to a three-point suspension module to form a standard tractor, which is the Shanniu series.

ITEM Kw/hp STANDARD CONFIGURATION

Engjnerated power r/min 36.5/50

Engine ratedspeed / 2400

Driving type / Four-wheel drive/ Rear drive

Steering mm Hull hydraulic articulated

Overall size (LxWxH) mm 5900x2100x2500

Wheelbase mm 2950

Wheeltrack (front/back) mm 1250/1250

Min.

ground clearance mm 230

Min.

turning radius mm 5150

Forward speed range km/h 2.4-39.21

Tires type / 8.25-16

Max slope % 36.4(≈20°)

EXTRACTION DEVICE

Overall size (LxWxH) mm 5950x2100x2500

Rated volume m³ 35

Suction flow m³/min ≥0.4

pipe diameter mm 100

Suctionlength m ≥30

Suction Deepth m ≥4
