Replacement Of Bondioli And Pavesi 6 Series Pto Shaft - China

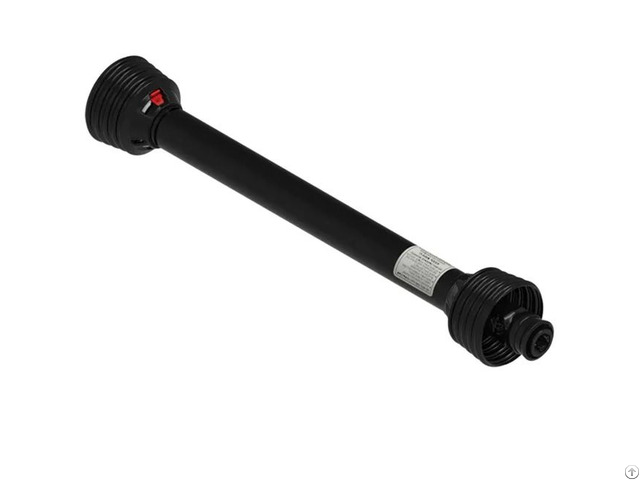

A 6-Series PTO (Power Take-Off) shaft is a form of shaft made of metal that is utilized for transferring power to a tractor or another source of power to a device or attachment.

Its "6 Series" designation refers to the standard dimensions and specs of the shaft such as its length, diameter, and the spline's profile.

PTO shafts of the 6 Series are often employed in agricultural applications like powering a mower or baler for hay.

They usually consist of two shafts: one of which is connected to the source of power and one that connects to a machine, and the telescoping sleeve allows the shaft to be adjusted in length according to the needs.

It is essential to make sure you are using a Six Series PTO shaft utilized is compatible with the tractor as well as the machine being used, and is well-maintained and safely operated.

In the event of a mishap, it could cause serious injuries or damage to equipment.

If you're in search of an effective and safe method to transfer power from a tractor into an implement and vice versa, then a 6 Series PTO shaft is an excellent alternative.

#6 Series PTO Shaft Design Features

The design characteristics of the six-series shaft for PTO are uniform to ensure compatibility among different models and brands of implements and tractors.

The most important design characteristics of a Six Series PTO shaft are: 1 - Spline profile The Six Series PTO shaft features 20 splines evenly spaced and have the pitch that is 1.57 inches.

The spline profile is utilized to transfer power from the tractor onto the machine.

2 - Shaft diameter 6- Series PTO shaft comes with an average diameter of 3/8 inches.

This is the standard dimension for PTO shafts that are used in agriculture.

3 - Length of the shaft: The total length of the 6- Series PTO shaft may vary dependent on the specific use however it generally is between 48 and 60 inches.

4 - Telescoping sleeves The 6- Series PTO shaft is constructed with a telescoping sleeve which allows it to be adjusted in length according to the need.

This lets the shaft move upwards and downwards without making the shaft bind or break.

5 - Safety features PTO shafts of the 6 Series are specifically designed to be safe and feature features like the shear bolt or slip clutch that breaks off in the event of an abrupt stop or overload.

This can prevent injury to your tractor the implement, and minimizes the risk of injury to the operator.

6 - Material The 6 Series shafts for PTO are usually made from high-strength stainless steel or other tough materials that can withstand strains of heavy usage in agricultural uses.

The overall design characteristics of the six Series PTO shaft is designed to provide safe and reliable operation, and compatibility with a broad range of implements and tractors.

#6 Series PTO Shaft Usage Scenarios

Six Series PTO shafts can be typically employed in a range of agricultural applications in which the tractor or another power source is utilized to power an attachment or implement.

Here are some typical scenarios in which the 6 Series PTO shaft could be utilized: Rotary cutters are a kind of mower which is attached to the rear of a tractor.

It's used to cut high grasses, tall weeds and brush.

The rotating cutter is driven by the tractor's PTO shaft which rotates the blades, cutting the plant life.

Hay balers: A baler is a device used to compress straw or hay into bales compact enough for storage or transportation.

The baler is driven by the tractor PTO shaft, which is turned by the belts and gears that make the bales more compact and tie them.

Planters and Seeders Planters and seeders are used to plant seeds on rows across fields.

The planter or the seeder operates on the tractor's PTO shaft which rotates the belts and gears that distribute seeds.

Spreaders for manure: A spreader is used to spread manure across fields to help fertilize crops.

The spreader is driven by the tractor PTO shaft, which is turned by the chains and gears that distribute the manure.

Augers They are utilized to move grain or feed substances into and out of storage containers or transport trucks.

Augers are driven by the tractor's PTO shaft that is turned by an array of belts and gears that transport the materials.

In general, the six Series shafts can be employed in a range of agricultural applications in which an efficient and reliable power transfer is needed between a tractor or an engine and an attachment or tool.
