Glass Cutting Machine - China

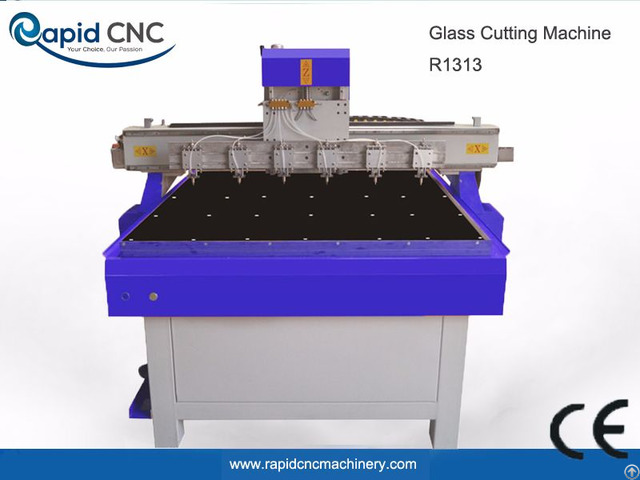

CNC Glass cutting machine for glass cutting R1313

Features:

1 - Lathe bed welded with thick channel steels and square tubes; Processed by high temperature tempering treatment and vibrating stress relief to reduce residual stress; ensure excellent stability, not easy to be deformed.

2 - Z axis adopts Germany-made ball screw, high precision.

3 - All the three axis’s are used imported products with high precision ballscrews

4 - All axis high speed stepper motors, servo motors to be optional;floating table easy for loading .

5 - Adopt own developped cutter holder, Germany cutting roller.

make sure fast speed cutting preformance .

6 - Pro glass cutting software, Compatible with Autocad file, Automatic air pressure adjustment, high working precision Applications: 1 - Machine is mainly used for all type of glass cutting with small size .

Such as construction glass, make-up mirror glass, furniture glass, clock glass, crafts glass, etc .

cnc glass cutter.

jpg

cnc glass cutting machine.

jpg

Technical parameters: No

Description

Parameter

1

Working size

1300X1300mm

2

Table size

1300X1350mm

3

Table type

Floating table

4

Machine Structure

Whole steel welded structure

5

Table Surface

Hard PVC/wood 6

Motor

Chinese Servo

7

Transmission

3 axis ballscrews

8

Cutting head

360 degree roation 9

speed

300-10000 RPM/min

10

Precision

0.025mm

11

Repeat positioning precision

<0.025mm

12

Air presure

0.6Mpa

13

Cutting speed

0-130m/min

14

Motor driver

Chinese Servo

15

Cutting thickness

2-19mm

16

Engraving code

G-code

17

Software environment

AutoCAD

18

voltage

AC220/380V/50HZ

19

Machine weight

650kgs

20

Machine dimension

1900*1900*1650mm Main accessories included:

1) Air pump for floating table 2) Allen keys 3) cutting tools 4) 1*USB Cable 5) 1*CD or electronic documents

6) 1*Power cables

7) 1*Tool box (for routine maintenance)

Machine delivery time: 14 working days.

Payment terms:

1 - 30% deposit T/T in advance, 70% before delivery from factory.

2 - L/C at sight.

3 - West union.

4 - Paypal etc.

Guarantee & After Sales Service

1).

Whole machine is guaranteed for 12 months.

2).

Technical support available 24 hours no matter through phone, email or whatsapp
