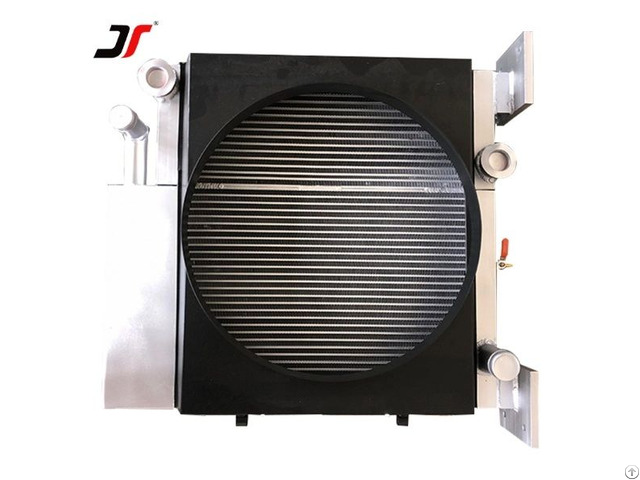

Professional Aluminum Bar Plate Air Compressor Aftercooler - China

Additional Information Warranty: 1 Year Lead time: 30 days Productivity: 150MT/Month Port: Shanghai Packaging & Delivery: wood case for Various type or customer’ requirements After-sales Service: 24 hours to service machinery overseas Customization 1 - Heat Transmission 2 - Liquid Flow Rate 3 - Working Temperature 4 - Working Pressure 5 - Temperature "In" and "out" 6 - Connection Type / Size 7 - Painting Requirement Please kindly provide us your technical parameters, then we can design for you.

Features

1 - Combination welded cores-air & oil cores 2 - Brazed aluminum core / bar and plate 3 - Excellent for field conversions 4 - Compact design 5 - Light weight 6 - Compact, high performance all aluminum core assembly 7 - Could be assembled with fan and fan cover APPLICATIONS

Highly flexible design options -Enhanced internal fin geometries for superior cooling -Wide variety of hot fins to balance internal Pressure drop -High efficiency louvered fins for superior Heat rejection -Wide variety of debris resistant non-louvered fins -Specially designed extruded tanks withstand High pressure -Ideal for low viscosity fluids -Welded tanks for a long leak-free life -Integral bypass relief valves OUR ADVANTAGE

01 VACUUM BRAZING 1 - We haveprofessional qualification certificate of brazing operators.

Different products adopt different brazing processes and set corresponding load thermocouples.

2 - The surface of the brazing seam is complete, continuous, uniform and smooth.

No solder accumulation, overflow, splashing exist.

No unmelted or cracks on the surface.

02 ARGON ARC WELDING 1 - We have professional qualification certificate for argon welding operators and Welder Skill Matrix.

2 - The crater should be filled up and slightly higher than the base metal.

The arc crater must not have cracks and shrinkage holes.

Backing plate welding is used for arcstarting and closing.

3 - Special processes such as double-sided welding, multi-layer welding, and penetration welding eliminate welding defects and ensure welding quality.

4 - The weld surface is straight, beautiful, with uniform scales and uniform height.

No surface pores, cracks, obvious bens and serious welds.

5 - Develop different standard welding operationconstructions for different products(SOP).

Company Contact:

• Posted By: Wuxi Jiusheng Heat Exchanger Co., Ltd.

• Phone: 86 18206171482

• Address: Room 2313 No.8 Tianshan Road,High-tech Zone,Wuxi China, Wuxi City, Room 2313 No.8 Tianshan Road,High-tech Zone,Wuxi China, China

• Email:

• Website: https://www.aluminumheatexchanger.com/

• Business Description: Jiusheng Heat Exchanger Co., Ltd was found in 2005, it is one of the largest and earliest Aluminum plate-fin heat exchanger supplier in China.

  With impendent R&D, JS has developed and produced wide ranges of aluminum plate-fin heat exchangers for many industry areas.

  The products are widely used in engineering machinery, air compressors, vehicle separation, construction machinery separation, hydraulic transmission oil radiators, wind and electricity, electrical locomotive separation.

  Js has completed inspection and test process with certificates, such as Proof Pressure Test, Burst Pressure Test, Pressure Cycling Test, Thermal Fatigue Test and so on.

  Nowadays JS has developed more than 10000 items of products.

  The products are widely used in USA, Mexico, Brazil, Canada, England, France, Germany, Russia, Japan, Korea and Southeast-Asia.
